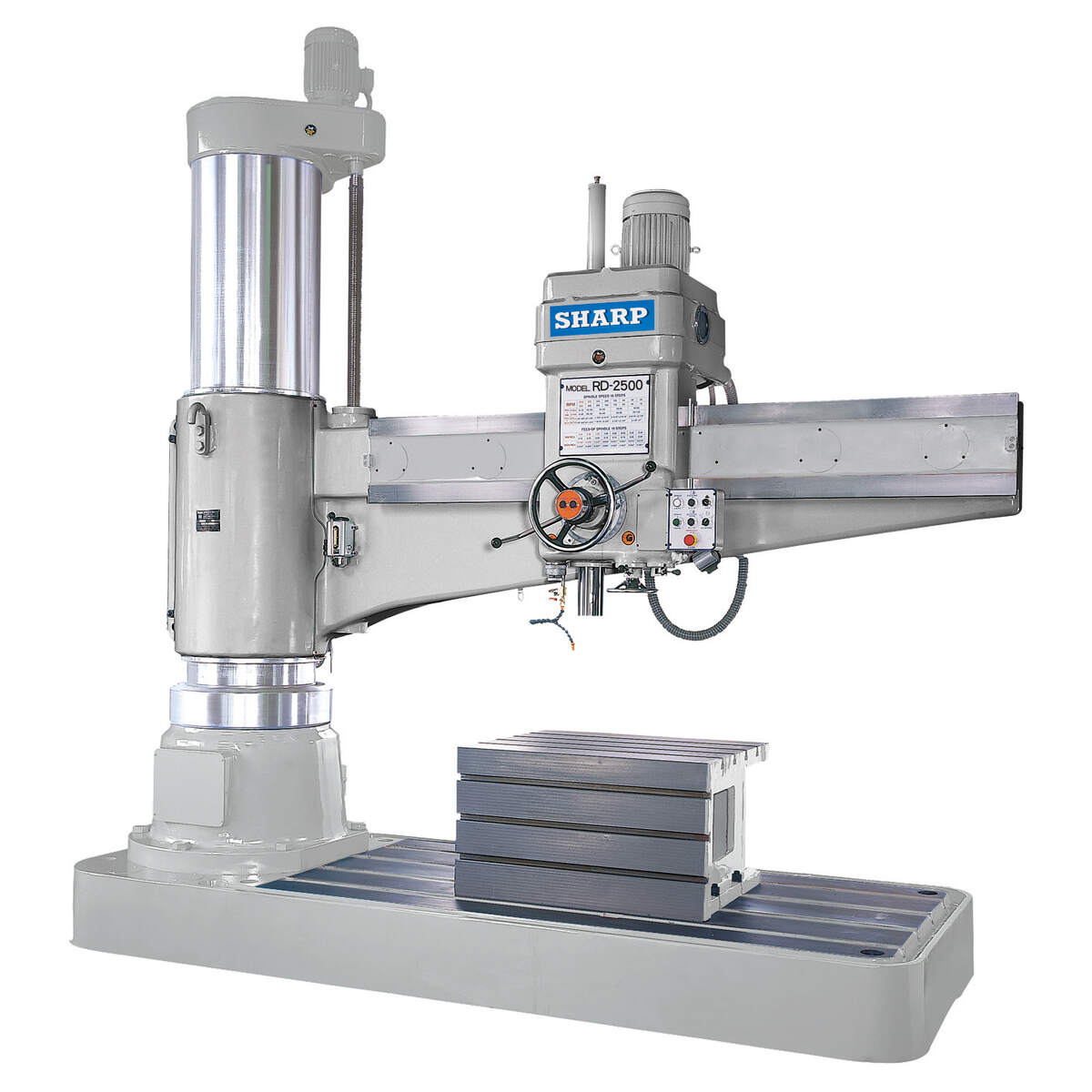

Sharp Industries 21.65" COLUMN DIAMETER, 98.42" ARM Radial Arm Drill RD-2500
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$162,600.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
- 22” column diameter
- MT #6 spindle, 10 HP motor
- 98.42” column to spindle center
- Drilling: 3.9” cast iron, 3.1” steel
- Boring: 8.2” cast iron, 6.5” steel
- Double tube column design for extra rigidity
- Arm elevation controlled by hydraulic motor
- Built-in automatic tool ejector
- Safety device prevents arm from dropping even when bronze nut is worn out
- Auto reverse tapping function
- T-slots and drain channels on box table
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Column & Spindle Travel | ||
| Diameter of Column | 21.65″ | 550 mm |
| Distance Col. Surface to Spindle Center, Max. | 98.42″ | 2500 mm |
| Travel of Spindle Head | 78.74″ | 2000 mm |
| Distance Base Surface to Spindle End, Max. | 78.74″ | 2000 mm |
| Distance Base Surface to Spindle End, Min. | 21.65″ | 550 mm |
| Elevating Height of Arm | 39.37″ | 1000 mm |
| Table & Base | ||
| Effective Area of Table | 39.37 × 31.49 × 22.04″ | 1000 × 800 × 560 mm |
| Dimensions of Base | 138.58 × 55.12 × 12.60″ | 3520 × 1400 × 320 mm |
| Spindle Specifications | ||
| Taper Hole in Spindle | MT #6 | |
| Stroke of Spindle | 17.72″ | 450 mm |
| R.P.M. of Spindle (range × steps) | 16–1250 × 16 steps | |
| Feed of Spindle (rev. × steps) | 0.0016–0.126″ × 16 steps | 0.040–3.20 mm × 16 steps |
| Motors & Coolant | ||
| Main Motor | 10 HP | 7.45 kW |
| Elevating Motor | 5 HP | 3.72 kW |
| Coolant Equipment | 0.25 HP | 0.18 kW |
| Physical & Weights | ||
| Machine Height from Floor, Max. | 13.09 ft. | 3.98 m |
| Base + Column Height | 12.63 ft. | 3.84 m |
| Net Weight | 24,200 lbs | 10,977 kg |
| Shipping Weight | 27,500 lbs | 12,474 kg |
| Shipping Dimensions (L × W × H) | 13.12 × 5.25 × 12.63 ft. | 4 × 1.60 × 3.84 m |
| Drilling & Tapping Capacity | ||
| Cast Iron Drilling | 3.15″ | 80 mm |
| Cast Iron Tapping | 3.94″ | 100 mm |
| Steel Drilling | 2.56″ | 65 mm |
| Steel Tapping | 2.95″ | 75 mm |
| Total Power Consumption | ||
| 220 V | 18 kVA / 50 amps | 18 kVA / 50 amps |
| 440 V | 18 kVA / 25 amps | 18 kVA / 25 amps |
Standard Equipment
- Box table
- Coolant system
- Work light
- 220V or 440V
Optional Add-Ons
Call for Price
- Tilting box table
