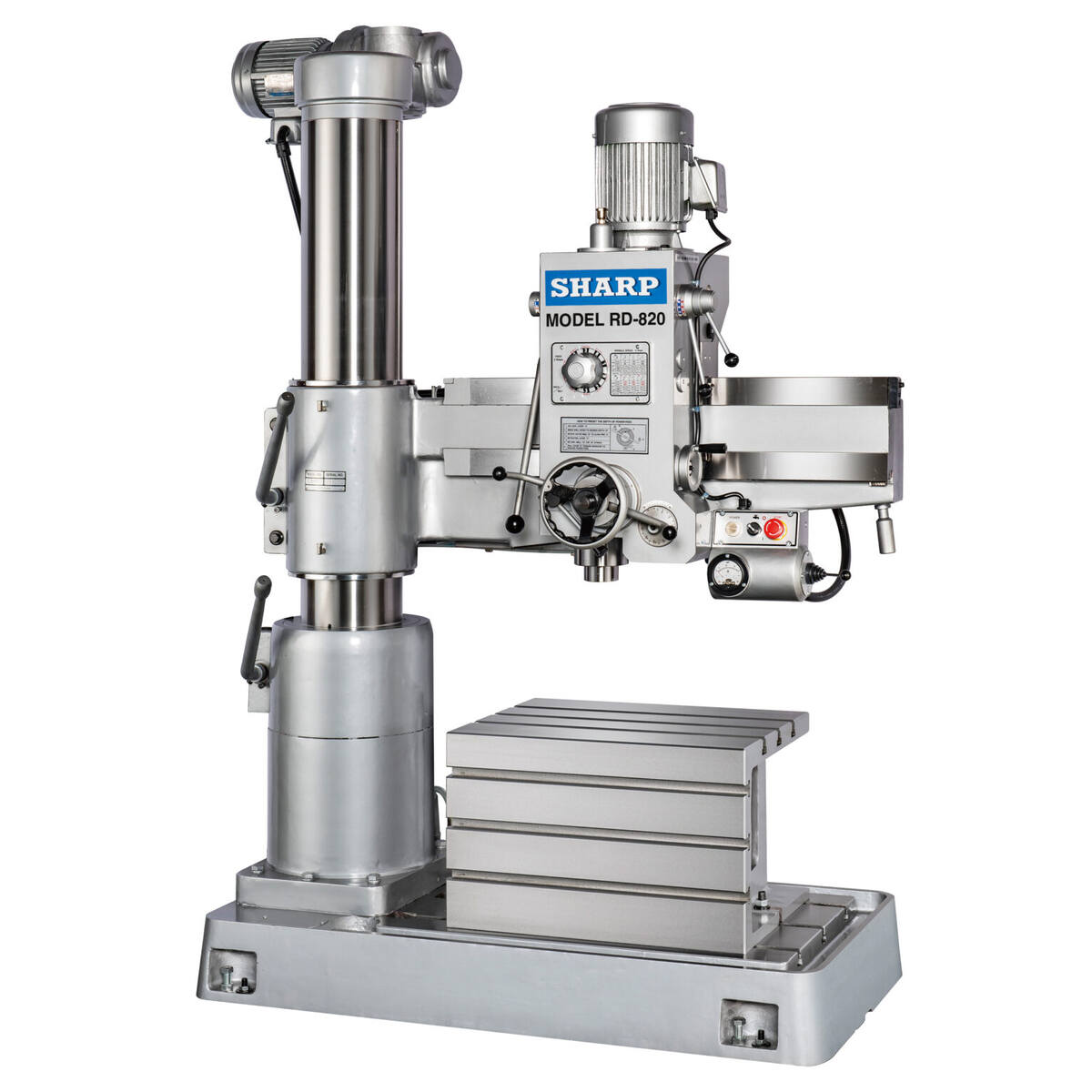

Sharp Industries 8.29" COLUMN DIAMETER, 33.5" ARM Radial Arm Drill RD-820
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$20,500.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
- 8.29” column diameter
- MT#4 spindle, 3 HP motor
- 33.46” column to spindle center
- Drilling : 1.968” cast iron, 1.259” steel
- Boring : 4.125” cast iron, 2.75” steel
- Hardened and ground arm slide ways and gears
- Arm elevation controlled by electric motor
- Manually operated arm, head, clamping
- Counter balanced spindle (spring action) to increase durability
- Safety device prevents arm from dropping even when bronze nut is worn out
- T-slots and drain channels on box table
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Column & Spindle Travel | ||
| Diameter of Column | 8.29″ | 210 mm |
| Distance Column Surface to Spindle Center, Max. | 33.46″ | 850 mm |
| Distance Column Surface to Spindle Center, Min. | 9.06″ | 230 mm |
| Travel of Spindle Head | 25.2″ | 640 mm |
| Distance Base Surface to Spindle End, Max. | 47.64″ | 1210 mm |
| Distance Base Surface to Spindle End, Min. | 14.76″ | 375 mm |
| Elevating Height of Arm | 24.61″ | 625 mm |
| Table & Base | ||
| Effective Area of Table | 23.62″ × 17.52″ × 14.96″ | 600 × 445 × 380 mm |
| Dimensions of Base | 49.21″ × 25.20″ × 6.30″ | 1250 × 640 × 160 mm |
| Spindle Specifications | ||
| Taper Hole in Spindle | MT #4 | |
| Stroke of Spindle | 8.27″ | 210 mm |
| R.P.M. of Spindle (range × steps) | 73–1247 × 6 steps | |
| Feed of Spindle (1PR × steps) | 88–1500 × 6 steps | |
| Motors & Controls | ||
| Main Motor | 3 HP | 3 HP |
| Elevating Motor | 1 HP | 1 HP |
| Clamping Motor (Column & Gear‑box) | Manual Clamp | |
| Clamping Motor (Arm) | Manual Clamp | |
| Coolant Pump | 1/8 HP | 1/8 HP |
| Physical & Power | ||
| Machine Height from Floor, Max. | 91.34″ | 2320 mm |
| Measurement (L × W × H) | 66 × 32 × 87″ | 1680 × 810 × 2210 mm |
| Approximate Shipping Weight | 2976.25 lbs | 1350 kg |
| Drilling, Tapping & Boring Capacity (Cast Iron) | ||
| Drilling | 1.97″ | 50 mm |
| Tapping Capacity | 1.26″ | 32 mm |
| Boring | 4.17″ | 106 mm |
| Drilling, Tapping & Boring Capacity (Steel) | ||
| Drilling | 1.26″ | 32 mm |
| Tapping Capacity | 0.98″ | 25 mm |
| Boring | 2.75″ | 70 mm |
| Total Power Consumption | ||
| 220 V | 5 kVA/15 amps | 5 kVA/15 amps |
| 440 V | 5 kVA/7.5 amps | 5 kVA/7.5 amps |
Standard Equipment
- Box table
- Coolant system
- Work light
- 220V or 440V
Optional Add-Ons
Call for Price
- Tilting box table
