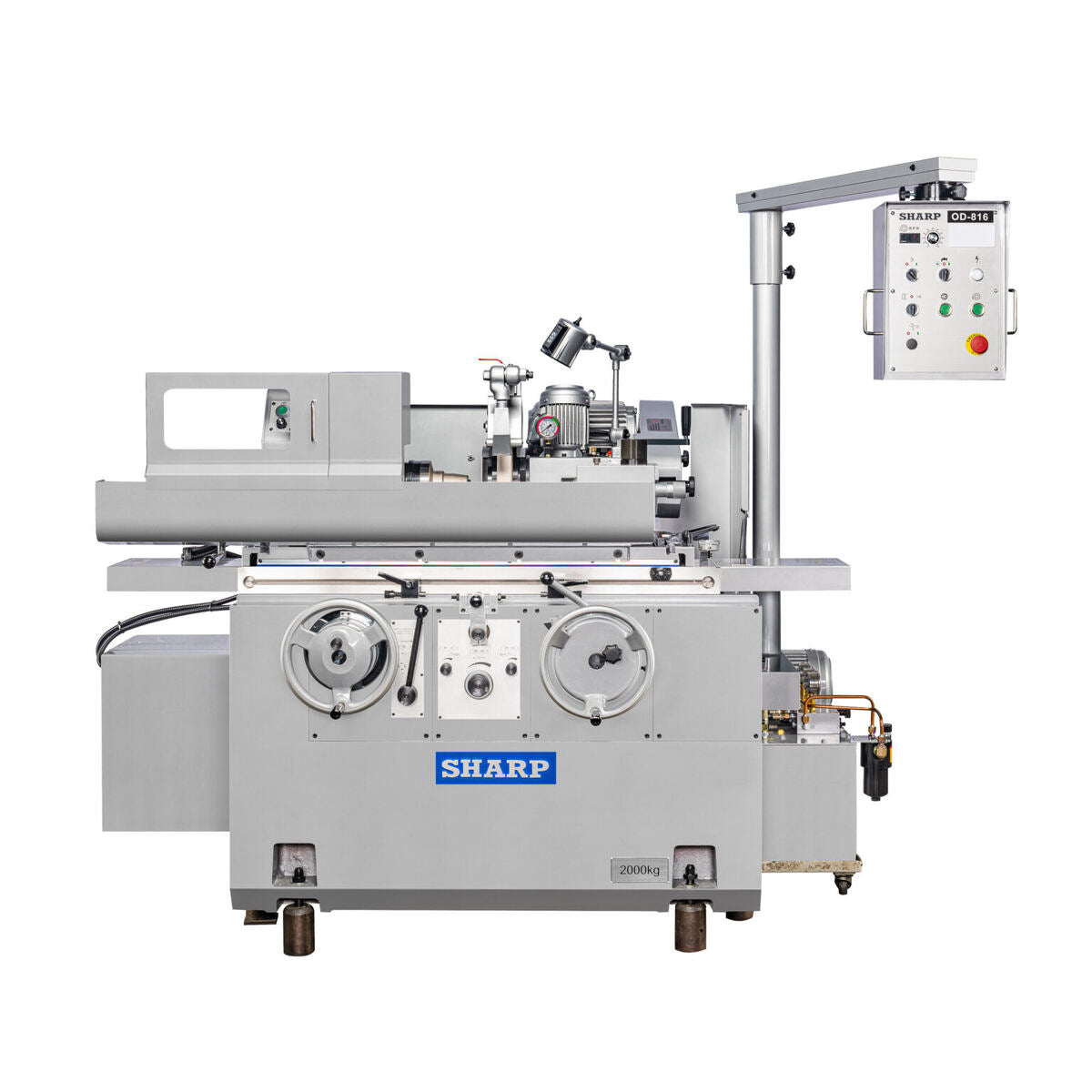

Sharp Industries 8" X 16" Cylindrical Grinder, Manual Infeed OD-816

Name: Sharp Industries 8" X 16" Cylindrical Grinder, Manual Infeed OD-816
Brand: Sharp Industries
SKU: OD-816
Price: 67300.0 USD
Availability: InStock

by Sharp Industries

There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.

$67,300.00

Quantity

Free Shipping to the Lower 48!

Authorized Sharp Industries Dealer

Manufacturer's Warranty on All Sharp Products

Proudly Tradesman Owned and Operated

No State Sales Tax Outside of PA. It's On Us!

Manual Wheel Head Infeed Type
Halogen work light
Auto lubrication system
Wheel flange (5″)
14″ x 1.5″ x 5″ grinding wheel w/ flange (Grinding Wheel Material: WA60L)
Wheel extractor
Carbide tip center (MT# 4) (2)
Balancing arbor
Diamond dresser with holder box w/ adjusting tools
Wired 220V or 440V (needs transformer)
Tailstock MT#3
Semi-Sliding Splash Guard

Specifications and Manual

Specification	Inch	Metric
Capacity & Loads
Distance Between Centers	15.7″	400 mm
Swing Over Table	7.87″	200 mm
Max Grinding Diameter	7.09″	180 mm
Max Load Between Centers	133 lbs	60 kg
Grinding Wheel
OD × Width × ID	14″ × 1.5″ × 5″	355 × 38 × 127 mm
Min. Input Increment	0.001 mm
Linear Velocity	45 m/s
Internal Grinding	Manual Elevation
Spindle Bearing	Special completed hydrostatic bearing
Wheelhead Travels
Swiveling Angle (R&L)	Fixed
Infeed Travel	6.3″	160.02 mm
Handfeed Travel	6.3″	160.02 mm
Top Slide Travel	7″	177.8 mm
Automatic Rapid Travel	1.75″	44.45 mm
Auto Increment Infeed (SE only)	0.001–0.1″	0.0254–2.54 mm
Handwheel per Graduation (dia.)	0.0002″	0.00508 mm
Handwheel per Revolution (dia.)	0.1″	2.54 mm
Workhead
Swiveling Angle (R&L)	30° ~ +90°
Center Taper	MT 4
Spindle Speed (Variable)	10–300 rpm
Max Load of Spindle (tool holder incl.)	15 kg (Max length: 100 mm)
Tailstock & Table
Tailstock Stroke	1″	25 mm
Tailstock Center Taper	MT 3
Table Swiveling Angle (R&L)	0° ~ 10°
Table Rapid Feed Rate	10 m/min
Table Min. Input Increment	0.001 mm
Table Lubrication	Hydraulic static slideway lubrication
ID Grinder (Opt)
Spindle Speed	14,000 or 25,000 rpm
Grinding Bore Range	0.95–2.75″	24.13–69.85 mm
Max Grinding Length	2.75″	69.85 mm
Max Chucking Length	10.8″	274.32 mm
Max Chucking Diameter	4″	101.6 mm
Motors & Coolant
Wheel Spindle Motor	3 HP	2.23 kW
Workhead Motor	0.5 HP	0.37 kW
Internal Grinding Motor	0.25 HP	0.18 kW
Coolant Pump	0.25 HP	0.18 kW
Wheel Spindle Lubrication Pump	0.25 HP	0.18 kW
Hydraulic Pump	0.5 HP	0.37 kW
Tank Capacities
Wheel Spindle Bearing Lubricate	7 L
Lubrication Oil Tank	46 L
General
Net Weight	4070 lbs	2000 kg

OD-816 Manual

Operation Manual and Parts List

Click Here to Open!

Optional Add-Ons

Call for Price

INTERNAL GRINDING ATTACHMENT (HINGED TYPE). (With one spindle-20000RPM. With diamond tool holder for wheel dressing. WITHOUT 3-jaw chuck.)
DIAMOND TOOL HOLDER FOR INTERNAL AND EXTERNAL GRINDING WHEEL DRESSING (UPWARD OPEN TYPE)
DIAMOND TOOL HOLDER FOR INTERNAL AND EXTERNAL GRINDING WHEEL DRESSING (SIDEWARD OPEN TYPE)
ANGULAR TRUING DEVICE
RADIUS TRUING DEVICE
CAM-LOCKED TYPE DRIVING DOG
WORK HOLDERS
2-POINT STEADY REST (Φ10~80mm) (for GU 20×40)
3-POINT STEADY REST
ADJUSTABLE 3-JAW SCROLL CHUCK 5″　(for GU 20×40)
ADJUSTABLE 3-JAW SCROLL CHUCK 7″ (178mm)
ADJUSTABLE 4-JAW SCROLL CHUCK 5” (for GU 20×40)
ADJUSTABLE 4-JAW SCROLL CHUCK 8” (200mm)
MAGNETIC COOLANT SEPARATOR 20L/MIN (for GU 20×40/32/42×60)
MAGNETIC COOLANT SEPARATOR 40L/MIN (for GU 20×40)
PAPER FILTER 20L/MIN (for GU 20×40)
PAPER FILTER 40L/MIN (for GU 20×40/32/42×60)
WHEEL FORMING DEVICE (MANUAL CONTROL)
WHEEL FORMING DEVICE (AUTO. CONTROL)
WHEEL BALANCING STAND & ARBOR
380V, 440V, 575V TRANSFORMER
5C SPINDLE
5C COLLET SET (8 PCS/SET)
5C AIR COLLET CHUCK (PNEUMATIC TYPE)
MPG ELECTRICAL HAND WHEEL
SPARE WHEEL FLANGE
BALANCING STAND
CE MARK
DIGITAL READOUT SYSTEM – ACURITE D.R.O.
D.R.O. FACTORY INSTALLATION CHARGE

Description
Specifications and Manual
Optional Add-Ons
Shipping
Authority Rigging Assistant

Description

Manual Wheel Head Infeed Type
Halogen work light
Auto lubrication system
Wheel flange (5″)
14″ x 1.5″ x 5″ grinding wheel w/ flange (Grinding Wheel Material: WA60L)
Wheel extractor
Carbide tip center (MT# 4) (2)
Balancing arbor
Diamond dresser with holder box w/ adjusting tools
Wired 220V or 440V (needs transformer)
Tailstock MT#3
Semi-Sliding Splash Guard

Specifications and Manual

Specification	Inch	Metric
Capacity & Loads
Distance Between Centers	15.7″	400 mm
Swing Over Table	7.87″	200 mm
Max Grinding Diameter	7.09″	180 mm
Max Load Between Centers	133 lbs	60 kg
Grinding Wheel
OD × Width × ID	14″ × 1.5″ × 5″	355 × 38 × 127 mm
Min. Input Increment	0.001 mm
Linear Velocity	45 m/s
Internal Grinding	Manual Elevation
Spindle Bearing	Special completed hydrostatic bearing
Wheelhead Travels
Swiveling Angle (R&L)	Fixed
Infeed Travel	6.3″	160.02 mm
Handfeed Travel	6.3″	160.02 mm
Top Slide Travel	7″	177.8 mm
Automatic Rapid Travel	1.75″	44.45 mm
Auto Increment Infeed (SE only)	0.001–0.1″	0.0254–2.54 mm
Handwheel per Graduation (dia.)	0.0002″	0.00508 mm
Handwheel per Revolution (dia.)	0.1″	2.54 mm
Workhead
Swiveling Angle (R&L)	30° ~ +90°
Center Taper	MT 4
Spindle Speed (Variable)	10–300 rpm
Max Load of Spindle (tool holder incl.)	15 kg (Max length: 100 mm)
Tailstock & Table
Tailstock Stroke	1″	25 mm
Tailstock Center Taper	MT 3
Table Swiveling Angle (R&L)	0° ~ 10°
Table Rapid Feed Rate	10 m/min
Table Min. Input Increment	0.001 mm
Table Lubrication	Hydraulic static slideway lubrication
ID Grinder (Opt)
Spindle Speed	14,000 or 25,000 rpm
Grinding Bore Range	0.95–2.75″	24.13–69.85 mm
Max Grinding Length	2.75″	69.85 mm
Max Chucking Length	10.8″	274.32 mm
Max Chucking Diameter	4″	101.6 mm
Motors & Coolant
Wheel Spindle Motor	3 HP	2.23 kW
Workhead Motor	0.5 HP	0.37 kW
Internal Grinding Motor	0.25 HP	0.18 kW
Coolant Pump	0.25 HP	0.18 kW
Wheel Spindle Lubrication Pump	0.25 HP	0.18 kW
Hydraulic Pump	0.5 HP	0.37 kW
Tank Capacities
Wheel Spindle Bearing Lubricate	7 L
Lubrication Oil Tank	46 L
General
Net Weight	4070 lbs	2000 kg

OD-816 Manual

Operation Manual and Parts List

Click Here to Open!

Optional Add-Ons

Call for Price

INTERNAL GRINDING ATTACHMENT (HINGED TYPE). (With one spindle-20000RPM. With diamond tool holder for wheel dressing. WITHOUT 3-jaw chuck.)
DIAMOND TOOL HOLDER FOR INTERNAL AND EXTERNAL GRINDING WHEEL DRESSING (UPWARD OPEN TYPE)
DIAMOND TOOL HOLDER FOR INTERNAL AND EXTERNAL GRINDING WHEEL DRESSING (SIDEWARD OPEN TYPE)
ANGULAR TRUING DEVICE
RADIUS TRUING DEVICE
CAM-LOCKED TYPE DRIVING DOG
WORK HOLDERS
2-POINT STEADY REST (Φ10~80mm) (for GU 20×40)
3-POINT STEADY REST
ADJUSTABLE 3-JAW SCROLL CHUCK 5″　(for GU 20×40)
ADJUSTABLE 3-JAW SCROLL CHUCK 7″ (178mm)
ADJUSTABLE 4-JAW SCROLL CHUCK 5” (for GU 20×40)
ADJUSTABLE 4-JAW SCROLL CHUCK 8” (200mm)
MAGNETIC COOLANT SEPARATOR 20L/MIN (for GU 20×40/32/42×60)
MAGNETIC COOLANT SEPARATOR 40L/MIN (for GU 20×40)
PAPER FILTER 20L/MIN (for GU 20×40)
PAPER FILTER 40L/MIN (for GU 20×40/32/42×60)
WHEEL FORMING DEVICE (MANUAL CONTROL)
WHEEL FORMING DEVICE (AUTO. CONTROL)
WHEEL BALANCING STAND & ARBOR
380V, 440V, 575V TRANSFORMER
5C SPINDLE
5C COLLET SET (8 PCS/SET)
5C AIR COLLET CHUCK (PNEUMATIC TYPE)
MPG ELECTRICAL HAND WHEEL
SPARE WHEEL FLANGE
BALANCING STAND
CE MARK
DIGITAL READOUT SYSTEM – ACURITE D.R.O.
D.R.O. FACTORY INSTALLATION CHARGE

Shipping

We have FREE shipping on all products. This product is too large to be unloaded with a lift gate. Because of this, it will take equipment to unload it. You will need your own equipment to unload it yourself or you can rent equipment to unload it or you may hire a rigging company to unload it for you. If you are unsure how to do this, please give us a call at (888) 884-9064 or email us at support@machineauthority.com.

Make sure to read our Authority Rigging Assistant Service tab to see the service we offer to help with this.

Thanks!

Authority Rigging Assistant

Do you need help unloading your new machine? Don't use your valuable time researching and calling local rigging companies. Have us do it for you!

The Authority Rigging Assistant is our service available for any order over 9900$. We will find several local rigging companies for you and get rough quotes from them on your behalf. Then you can choose the best one and work with them on the final details. We also provide recommendations as to how to get rid of your old machinery if you need it.

Have professional machinery movers with liability coverage take the worry out of your delivery day. Make sure to ask us about getting an Authority Rigging Assistant!
