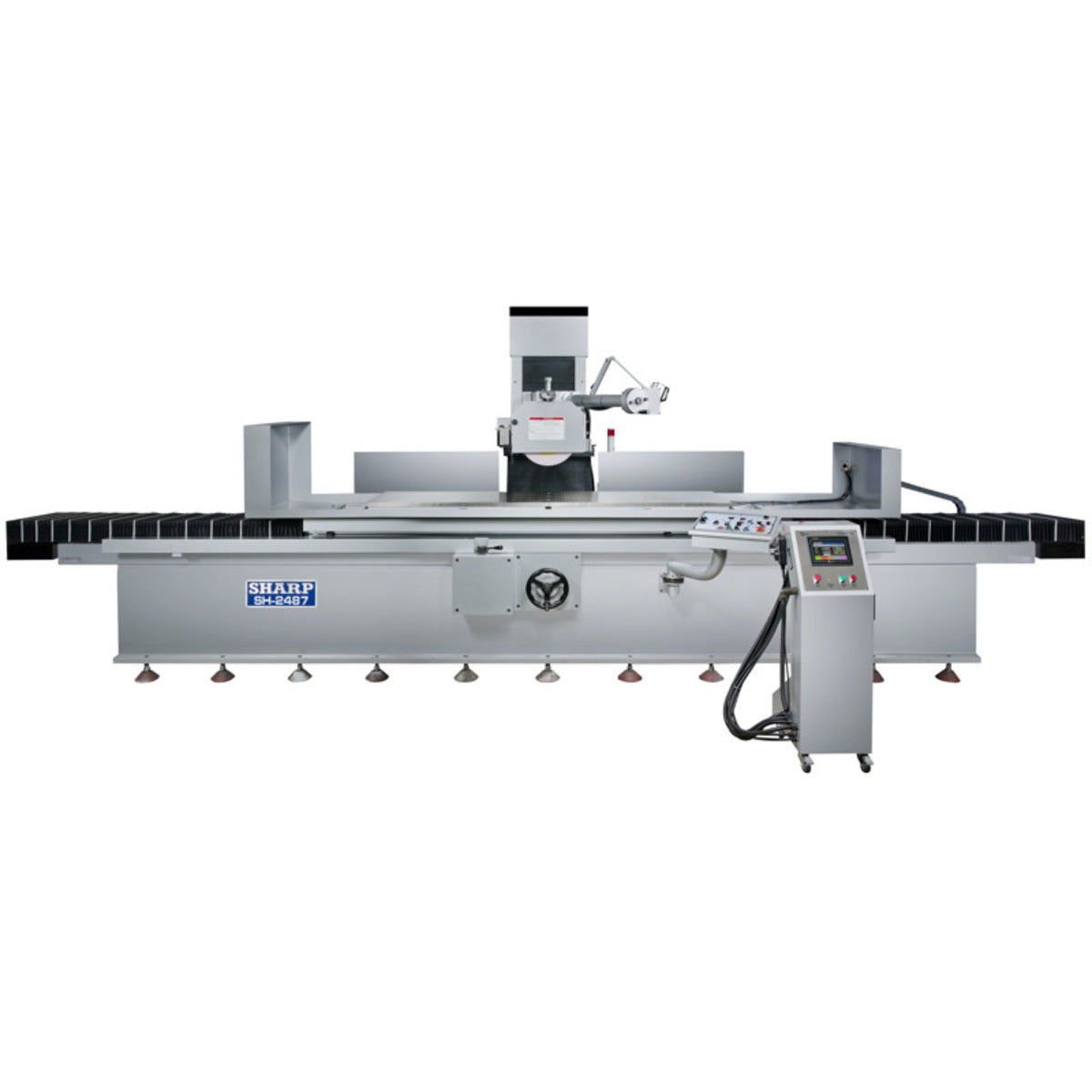

Sharp Industries 20" x 60" Semi-Automatic Surface Grinder SHT-2060-2A
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$118,800.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a large size surface grinder suitable for grinding big, heavy work piece. To ensure smooth and steady movements, the cross travel is designed by having the vertical column travels in and out instead of the saddle. The table and column travels on T-shaped one piece casting base with TURCITE coated sideways.
- For cross travel, the vertical column travels in and out instead of a saddle. This design offers more accurate grinding for large, heavy work piece
- The length of the bed ways are twice the table length to ensures no overhang of the table.
- Longitudinal and cross slide ways are hand-scraped and Turcite coated for high wear resistance and smooth table and column movements
- Hydraulic longitudinal table movement
- Motorized cross column movement with solid state relay.
- Spindle rapid traverse is standard. NC down feed is optional
- Free standing hydraulic units prevents heat and vibration from causing grinding inaccuracy
- Two single action hydraulic cylinders and piston rods ensures stable table motion.
Specifications and Manual
| Specification | SHT-2060-2A |
|---|---|
| Capacity | |
| Table Travel | 22 × 65 in. (560 × 1,650 mm) |
| Spindle Center to Table Surface | 28 in. (700 mm) |
| Table | |
| Working Surface | 20 × 60 in. (500 × 1,500 mm) |
| Longitudinal Hydraulic Table Feed | 39.37–984.25 in./min (1–25 m/min) |
| Feed | |
| Intermittent Cross Feed | 0.04–0.6 ipm (1.01–15.24 mm/min) |
| Continuous Cross Feed (Ballscrew) | 39 ipm (990.6 mm/min) |
| Number of Graduations on Dial | 200 |
| Feed per Graduation | 0.001 in. (0.0254 mm) |
| Feed per Revolution | 0.200 in. (5.08 mm) |
| Vertical Travel | |
| Number of Graduations | 100 |
| Feed per Graduation | 0.0001 in. (0.00254 mm) |
| Feed per Revolution | 0.010 in. (0.254 mm) |
| Rapid Downfeed (optional) | 11.8 ipm (299.72 mm/min) |
| Motor | |
| Wheel Size (OD × Width × ID) | 14 × 2 × 5 in. (355.6 × 50.8 × 127 mm) |
| Spindle Motor | 10 HP (7.45 kW) |
| Approximate Weight | 18,800 lbs. (8,527.5 kg) |
| Machine Dimensions (L × W × H) | 17.5 × 7.5 × 8.5 ft. (5.33 × 2.28 × 2.59 m) |
| Total Power Consumption | |
| 220V | 15.84 KVA / 68 amps |
| 440V | 15.84 KVA / 34 amps |
Standard Equipment
- Coolant System (25 Gal.)
- Wheel Balancer
- Wheel Balancing Stand & Arbor
- Ballscrew on Cross Feed
- Electronic Crossfeed & Stroke Setting
- Wheel Flange
- Grinding Wheel (14” x 2 “ x 5”)
- Auto Lube System
- Spindle head rapid up & down
- Wired 220V or 440V. Please specify
- Splash guard both front and back
Optional Add-Ons
Call for Price
- NC spindle down feed with touch screen, servo motor, ballscrew
- Auto parallel dresser
- 15HP Upgraded from 10HP
- Coolant System w/Paper Filter & Magnetic Separator (30 Gal)
- Parallel Dresser (Manual)
- Parallel Dresser (Semi-Automatic)
- Spare Wheel Adaptor (Flange)
- Radius and Angle Dresser
- Mist collection system
