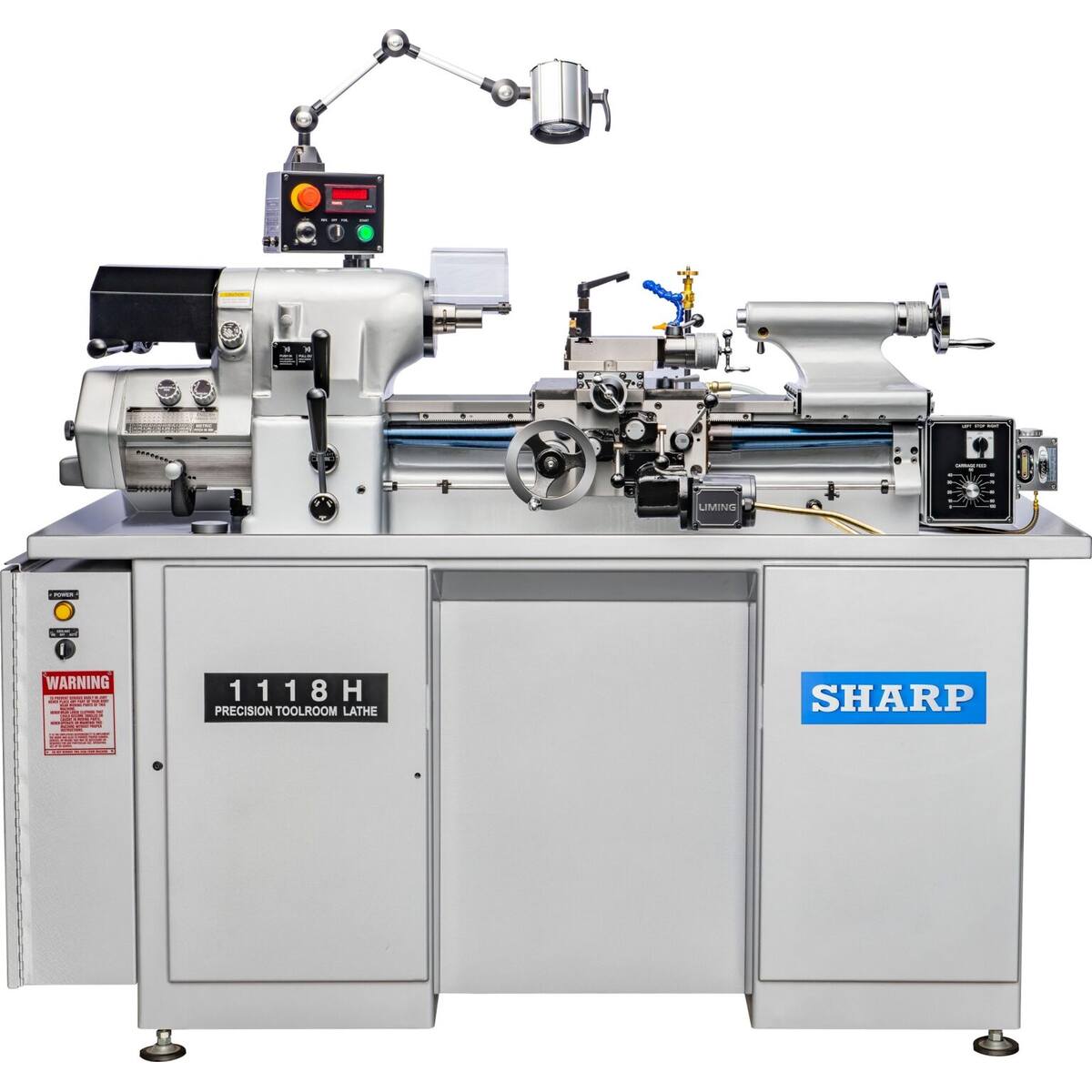

Sharp Industries 11" x 18" Ultra Precision Toolroom Lathe, 5HP Digital Variable Speed Drive 1118-H
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$43,255.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This toolroom lathe is ideal for small parts especially for those that requires threading. It offers very high precision (0.000050” TIR) and fast turn around time for machining tiny parts.
- Digital variable speed (DVS) drive system
- High speed spindle 130-4,000 RPM, accuracy within 50 millionth TIR
- Hardened and ground spindle
- Independent electric feed rate control on carriage and cross slide
- Quick change inch/metric gearbox with 36 changes
- Spindle supported by paired angular contact bearings
- Quick action slide for threading
- One piece alloy steel material, hardened and ground dovetail
- Bedways with Turcite on carriage & bed for oil retention
- Adjustable thread length control stops
- Hardened and ground leadscrews
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Spindle Capacity | ||
| With Jaw Chucks | 6 in. | 150 mm |
| With Expanding Collets | 3 in. | 76 mm |
| With Round 5C Collets | 1‑1/16 in. | 27 mm |
| With Step Chucks | 1‑1/16 – 6 in. | 27 – 152 mm |
| General Capacity | ||
| Swing Over Bed | 11 in. | 280 mm |
| Swing Over Cross Slide | 6 in. | 152 mm |
| Distance Between Centers | 18 in. | 457 mm |
| Headstock | ||
| Spindle Speed | 50 – 4,000 rpm | 50 – 4,000 rpm |
| No. of Spindle Speeds | Variable (high/low) | |
| Spindle Nose Diameter | 2.19 in. | 55.5 mm |
| Spindle Bore | 1‑1/4 in. | 31.75 mm |
| Spindle Nose ID/OD | 5C 10°/4° taper | |
| Threads & Feeds | ||
| Threads / Number | 11 – 108 tpi / 36 | 0.275 – 2.7 mm / 36 |
| Longitudinal Feeds | 0.31 ipr | 8 – 178 mm/r |
| Cross Feeds | 0.18 ipr | 5 – 102 mm/r |
| Leadscrew Pitch, Diameter | 8 tpi, 1 in. | 8 tpi, 25.4 mm |
| Carriage | ||
| Cross Slide Travel | 6 in. | 152 mm |
| Compound Slide Travel | 3 in. | 76 mm |
| Quick Action Compound Travel | 0.1 in. | 2.5 mm |
| Tailstock | ||
| Quill Diameter | 1.35 in. | 34.5 mm |
| Quill Travel | 3.75 in. | 95 mm |
| Quill Center Taper | MT #2 | |
| General | ||
| Spindle Motor | 5 HP | 3.7 KW |
| Voltage | 220V, 440V | |
| Phase | 3 Ph (no 1 Ph) | |
| Coolant Pump Motor | 0.167 HP | 0.124 Kw |
| Carriage Feed Motor (DC) | ½ HP, 220V | 0.37 Kw |
| Approximate Weight | 1,804 lbs | 820 Kg |
| Dimensions (L × W × H) | 6.07 × 2.46 × 5.58 ft. | 1.85 × 0.75 × 1.70 m |
Standard Equipment
- Splash guard
- Coolant system
- 5C collet closer
- 5C collet holder (2)
- Chuck guard
- Spindle nose cover
- Leadscrew cover
- American tool post
- Drive dog & gear
- Adjustable tool setting gauges
- Halogen work light
- Drive plate
- Headstock center
Optional Add-Ons
Call for Price
- 3-jaw 6″ chuck with 6″ fixture plate
- 4-jaw 6″ chuck with 6″ fixture plate
- 6-jaw chuck with 6″ fixture plate
- 3-jaw 6″ zero set chuck with fixture plate
- 4-jaw 6″ chuck with fixture plate
- 6-jaw chuck with 6″ fixture plate
- 380V, 440V, 575V transformer
- 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 sets
- 7″ face plateQuick change tool holder set 7 sets
- Vertical cut-off slide
- Taper attachment
- Steady rest
- Follow rest
- Micrometer cartridge stop with bracket
- Dorian tool-MT #2
- Dorian tool-MT #2
- Drill chuck & arbor
