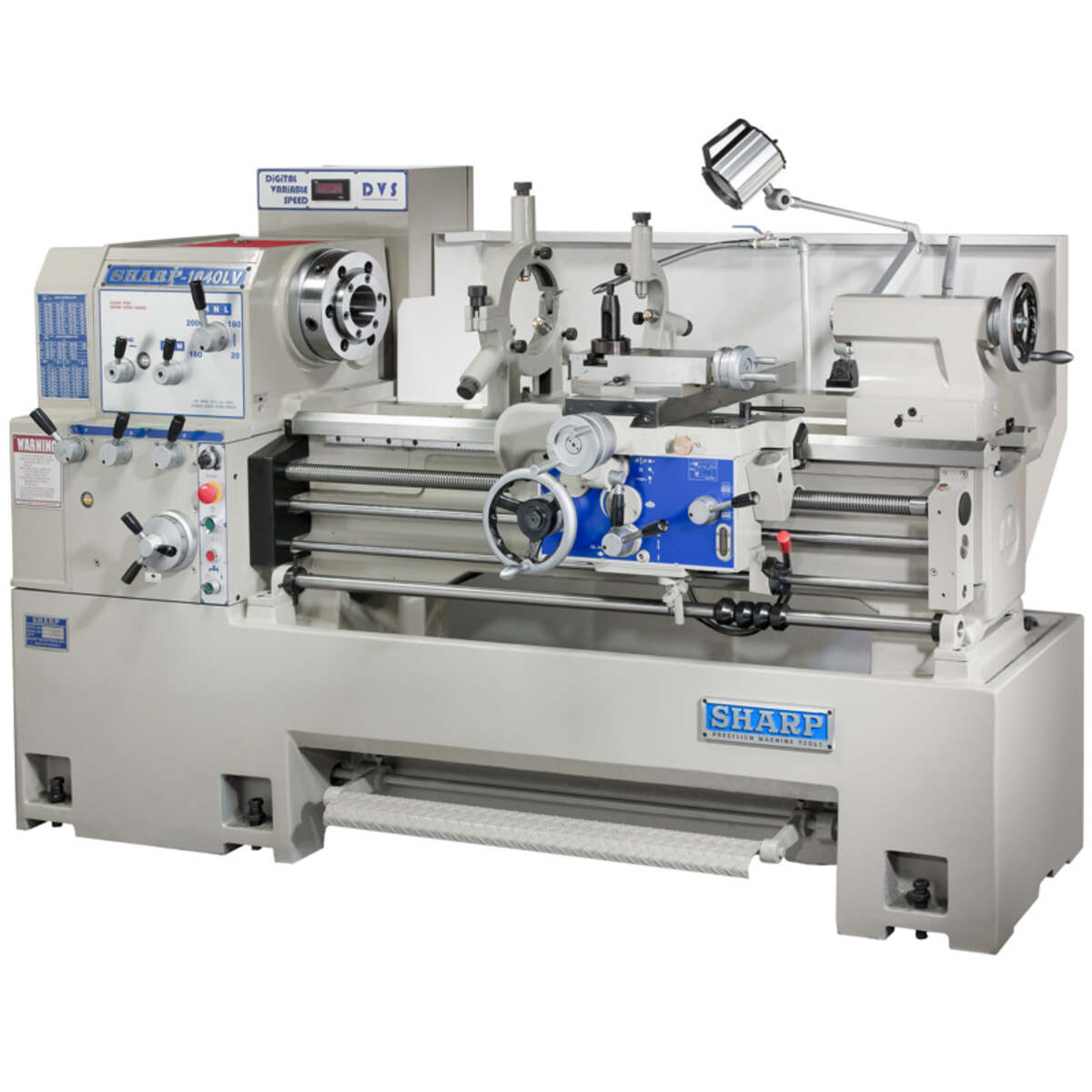

Sharp Industries 18" x 80" Precision Lathe, Digital Variable Speed 1880-LV
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$35,274.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This model is designed with 3.18” spindle hole which is unique for 18” swing lathes. Due to its one piece casting machine base, it can support heavier cutting on large diameter materials. The large through hole allows most 3” diameter oil pipes to be machined. The variable speed spindle allows easy change of speeds.
- 18″ x 80″, geared head, D1-8 camlock, 3.18″ bore, 7.5 HP, variable speed 20-2,000 rpm (Hi, Low)
- Direct selection for inch/metric threads
- One piece Meehanite casting bed
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity | ||
| Swing Over Bed | 18 in. | 457 mm |
| Swing Over Cross Slide | 10.2 in. | 259.08 mm |
| Swing Over Gap | 27.12 in. | 688.8 mm |
| Gap Width (In Front Of Faceplate) | 11.75 in. | 298.4 mm |
| Distance Between Centers | 86.6 in. | 2199.6 mm |
| Headstock | ||
| Spindle Speed | Hi: 235–2,000 rpm Low: 20–170 rpm |
Hi: 235–2,000 rpm Low: 20–170 rpm |
| No. of Spindle Speeds | 12 | 12 |
| Spindle Nose | D1-8 camlock | D1-8 camlock |
| Spindle Bore | 3.06 in. | 77.7 mm |
| Threads & Feeds | ||
| Threads, Number | 4–56 tpi, 36 0.5–7 mm, 17 |
|
| Diametral Pitch Threads, Number | 0.157–2.20 in, 36 | 4–56 mm, 36 |
| Longitudinal Feeds | 0.002–0.032 in/rev | 0.05–0.82 mm/rev |
| Cross Feeds | 0.0001–0.0094 in/rev | 0.02–0.4 mm/rev |
| Leadscrew Pitch, Diameter | 4 tpi, 1.37 in. | 4 tpi, 1.37 in. |
| Carriage | ||
| Cross Slide Travel | 10.8 in. | 275 mm |
| Compound Travel | 4.9 in. | 124.4 mm |
| Compound Width | 5 in. | 127 mm |
| Bed | ||
| Bed Length | 110 in. | 2794 mm |
| Bed Width | 11.75 in. | 11.75 in. |
| Tailstock | ||
| Quill Diameter | 2.68 in. | 68.07 mm |
| Quill Travel | 5.5 in. | 139.7 mm |
| Quill Center Taper | MT #4 | MT #4 |
| General | ||
| Spindle Motor | 7.5 HP | 5.59 Kw |
| Voltage | 230V/460V | 230V/440V |
| Phase | Single or 3 Phase | 3 Phase |
| Power Consumption (230V) | 8 KVA / 25 amps | 8 KVA / 25 amps |
| Power Consumption (460V) | 8 KVA / 12.5 amps | 8 KVA / 12.5 amps |
| Approximate Weight | 5,300 lbs. | 2,404.03 Kg |
| Dimensions (L × W × H) | 11.21 × 1.75 × 4 ft. | 3.41 × 0.53 × 1.21 M |
Standard Equipment
- 3-jaw 10″ chuck, 12” face plate, steady rest
- Removeable gap, back plate
- Coolant system, American tool post
- Full length splash guard
- Center sleeves, dead center, tool kit
- • wired 220V or 440V
Optional Add-Ons
Call for Price
- 3-jaw 12″ chuck
- 4-jaw 12″ chuck
- Chuck guard
- Tool guard (at front of compound slide with limit switch)
- Lead screw cover (full length, accordion style)
- Safety cover at end of spindle
- UL or CSA electrical components, UL spindle motor, CSA pump motor
