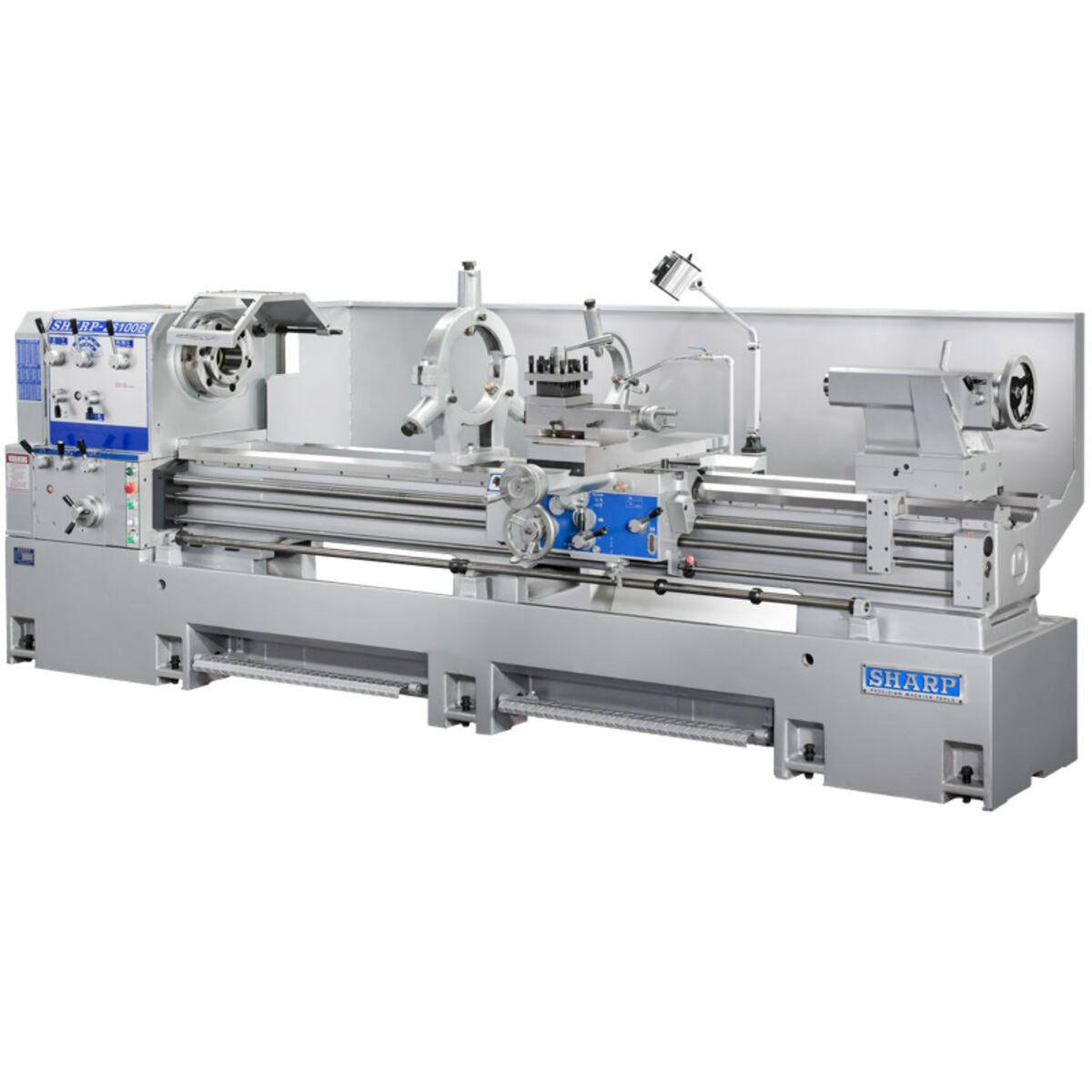

Sharp Industries 22" X 40" Heavy Duty Lathe, 15HP Geared Head Drive, Gap Bed 2240-B
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$45,000.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
- D1-11 camlock spindle
- 4.5″ spindle bore
- 15 HP motor
- 12 speeds (10-1,000 rpm)
- Quick change gearbox
- One piece Meehanite cast bed
- Direct selection for inch / metric threads
- Double chucks available as option
Specifications and Manual
| Specification | 2240B |
|---|---|
| Capacity | |
| Swing Over Bed | 22″ (558.8 mm) |
| Swing Over Cross Slide | 13.2″ (335.3 mm) |
| Swing Over Gap | 31″ (787.4 mm) |
| Distance Between Centers | 40″ (1016 mm) |
| Headstock | |
| Spindle Speed | 10–1,000 rpm |
| No. of Speeds | 12 |
| Spindle Nose | D1‑11 camlock |
| Spindle Bore | 4.5″ (114.3 mm) |
| Threads & Feeds | |
| Threads | 2‑56 TPI, 44 kinds (0.5–14 mm, 24) |
| Modular Threads | 0.019–0.55″, 24 kinds (0.5–14 mm, 24) |
| Diametral Pitch | 0.157–2.20″, 36 kinds (4–56 DP, 36) |
| Longitudinal Feeds | 0.0022–0.032″/rev (0.055–0.812 mm/rev) |
| Cross Feeds | 0.00026–0.035″/rev (0.006–0.889 mm/rev) |
| Leadscrew | 4 TPI, 1.5″ dia. |
| Carriage | |
| Cross Slide Travel | 14.75″ (374.6 mm) |
| Compound Travel | 8″ (203.2 mm) |
| Compound Width | 6″ (152.4 mm) |
| Bed | |
| Bed Length | n/a |
| Bed Width | 15.75″ (400 mm) |
| Tailstock | |
| Quill Dia. | 3″ (76.2 mm) |
| Quill Travel | 6.5″ (165.1 mm) |
| Quill Taper | MT #5 |
| General | |
| Spindle Motor | 15 HP (11.18 kW) |
| Voltage/Phase | 220/440 V, 3 phase |
| Power Cons. (220 V) | 16 kVA/45 A |
| Power Cons. (440 V) | 16 kVA/22.5 A |
| Approx. Weight | 5280 lbs (2395 kg) |
| Footprint | 7.08×3.41×4.16 ft (2.15×1.03×1.26 m) |
Standard Equipment
- 4-jaw 16″ chuck, face plate (20″)
- Steady rest (4″ – 11.5″), 4 ways tool post
- Coolant system, halogen light • 4-way carriage stop
- Splash guard & 16″ chuck guard
- Tailstock, follow rest, tool kit
- Rapid transverse on longitudinal (on 100″centers distance and up only)
- Wired 220V or 440vV
Optional Add-Ons
- 3-jaw chuck, different sizes
- 4-jaw chuck, different sizes
- Taper attachment
- Chuck guard w/ limit switch
- Tool guard w/ limit switch,at front of compound
- Lead screw wrapped around screw (accordion style)
- Lead screw guard, cover entire front of machine bed
- Safety cover at the end of spindle
- UL or CSA electrical components, UL spindle motor, CSA pump motor
- Steady rest
- Quick change tool holder (aloris) (7 pcs holder) 1.25″ tool
- Live center – (dual bearing) MT #5
- 5C lever collet closer
- 5C collet set (1/8 to 1/16″ x 1/16″) (16 pcs) • Micrometer carriage stop
- Roller jaws set (3 pc)
