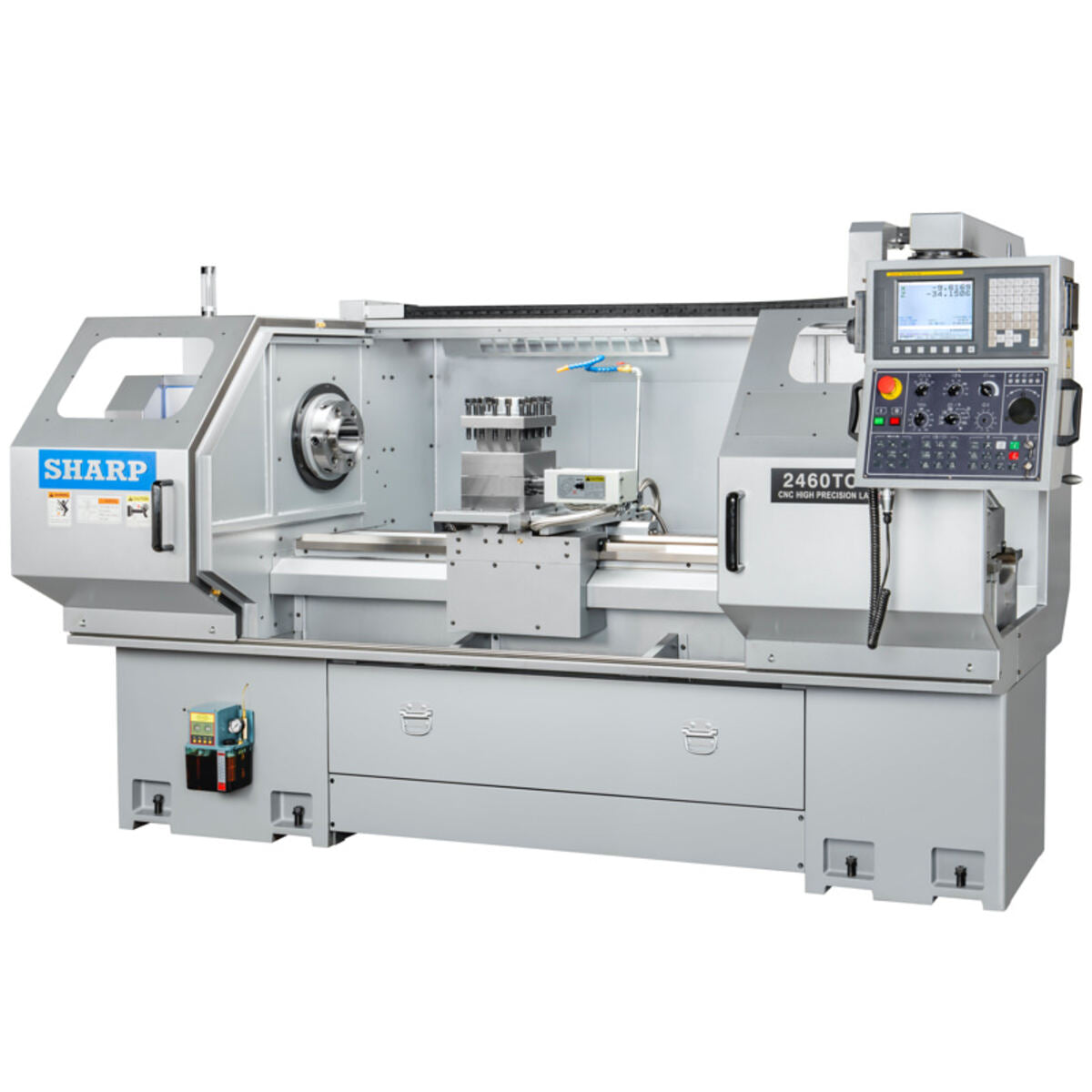

Sharp Industries 24" Swing X 60" Between Centers CNC/Manual Lathe, Fanuc Control , D1-8 Camlock, 3.4" Bore 2460-TC-F
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
This is a user friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
• FANUC Oi-TF CNC , 8.4” LCD screen
• 24” swing, 59” between centers
• D1-8 camlock, 4.09” spindle bore,
• 15 HP motor
• 2 steps gear speed change (30-1,600 rpm)
• programmable spindle speed
• Electronic Handwheel (MPG)
• 4- way programmable tool post
• Auto lube system
The Fanuc OiTF all digital control and drive package provides exceptional value and reliability. The control features a clear 8.4” LCD screen that pivots out of easy operator viewing. It can catalog 400 part-program numbers and features an internal 2 GB solid state Data Server with 512 K RAM memory reserved for part programs. It features an embedded high speed Ethernet capability and AICC II and includes DB-25, RS-232 serial interface, RJ-45 Ethernet interface USB, and PC MCIA CF memory card connections for program transfer. Manual Guide-i conversational programming provides fast & efficient intuitive menu driven shop floor programming and includes a Thread Repair Cycle. An MPG handwheel is also provided.
Selected functions:
- Chuck & tailstock barrier
- Chamfering on/off
- Exact stop mode or one-time
- Work shifts G 52-G59
- Programmable parameters
- Canned cycles
- Rigid tapping
- Constant surface speed control
- Direct input of offset value measured
- Stored stroke check 1, 2 & 3
- Chamfering and corner radius
- Multi & continuous threading
- DBC operation with memory card
- Sub program call
- Direct input of coordinate system shift
- 64 offset pairs
- Mirror image
- Program & sequence # search
- Variable lead thread cutting
- Customer macros
- Circular interpolation by R programming
- Spindle speed override
- Tool nose radius compensation
- DNC operation from memory card
- Multiple repetitive canned cycles 1 & 2
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity | ||
| Swing Over Bed | 24 in. | 609.6 mm |
| Swing Over Cross Slide | 14.5 in. | 368.3 mm |
| Distance Between Centers | 59 in. | 1,498.6 mm |
| Headstock | ||
| Spindle Speed | 43–250 rpm | |
| Spindle Nose | D1‑6 camlock | |
| Spindle Bore | 4.09 in. | 103.88 mm |
| Carriage | ||
| Cross Slide Travel | 10.63 in. | 270 mm |
| Bed | ||
| Bed Length | 102.2 in. | 2,595.88 mm |
| Bed Width | 14.5 in. | 368.3 mm |
| Tailstock | ||
| Quill Diameter | 2.93 in. | 74.42 mm |
| Quill Travel | 6.31 in. | 160.27 mm |
| Quill Center Taper | MT #5 | MT #5 |
| General | ||
| Spindle Motor | Fanuc 15 HP | 11.18 Kw |
| Approximate Weight | 8,820 lbs. | 4,000.6 kg |
| Dimensions (L × W × H) | 10.66 × 6.25 × 7.16 ft. | 3.24 × 1.90 × 2.18 m |
Standard Equipment
- Full enclosure splash guard
- Electrical box to suit CNC Turning Control
- 4-way programmable tool post
- Incandescent Work Lamp
- Encoder for Spindle RPM
- Electronic handwheel (MPG) X & Y Axis
- Center sleeve MT#6 x MT#4
- Two dead centers
- Chip tray
Optional Add-Ons
Call for Price
- Hydraulic tailstock in lieu of manual tailstock
- 3-jaw heavy duty 10” chuck
- 3-jaw heavy duty 12” chuck
- Hydraulic 3-jaw 10” heavy duty
- Hydraulic 8 position turret with 4 x internal tool holder, 4 x external tool wedges
- Steady rest
- Follow rest
- Transformer 440V
- Spindle chiller
