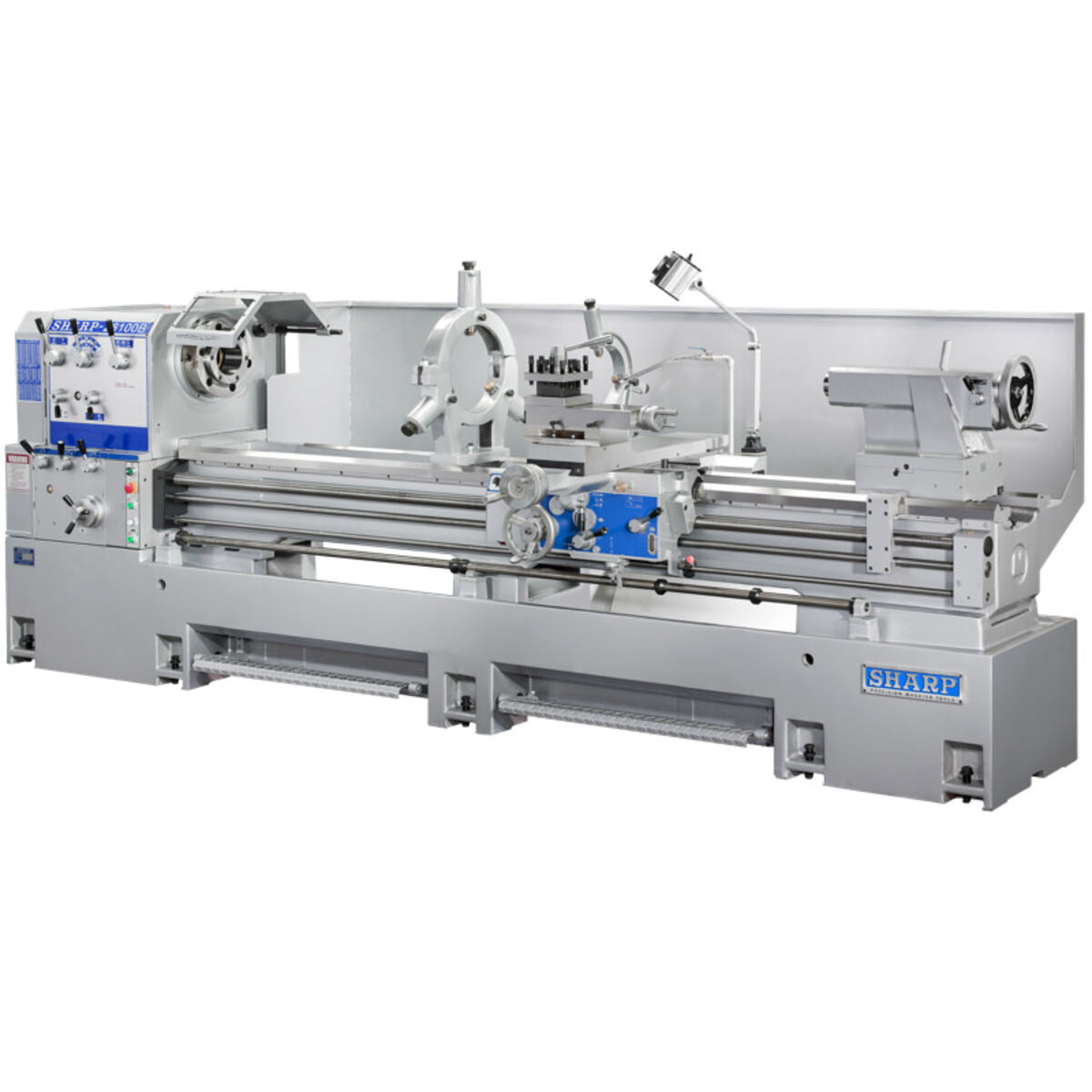

Sharp Industries 26" x 160" Heavy Duty Gap Bed Lathe 26160-B
$72,300.00
This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
- D1-11 camlock spindle
- 4.5″ spindle bore
- 15 HP motor
- 12 speeds (10-1,000 rpm)
- Quick change gearbox
- One piece Meehanite cast bed
- Direct selection for inch / metric threads
- Double chucks available as option
Specifications and Manual
| Specification | 26160B |
|---|---|
| Swing Over Bed | 26 in. (660.4 mm) |
| Swing Over Cross Slide | 17.33 in. (440.1 mm) |
| Swing Over Gap | 35 in. (889 mm) |
| Distance Between Centers | 160 in. (4,064 mm) |
| Spindle Speed | 10–1,000 rpm |
| Spindle Nose | D1-11 camlock |
| Spindle Bore | 4.5 in. (114.3 mm) |
| Threads, Number | 2–56 in., 44 (0.5–14 mm, 24) |
| Modular Threads, Number | 0.019–0.55 in., 24 (0.5–14 mm, 24) |
| Diametral Pitch Threads, Number | 0.157–2.20 in./rev (4–56 mm/rev) |
| Longitudinal Feeds | 0.0022–0.032 in./rev (0.055–0.812 mm/rev) |
| Cross Feeds | 0.0026–0.035 in./rev (0.0066–0.889 mm/rev) |
| Leadscrew Pitch, Diameter | 4 tpi, 1.5 in. |
| Cross Slide Travel | 14.75 in. (374.6 mm) |
| Compound Travel | 8 in. (203.2 mm) |
| Compound Width | 6 in. (152.4 mm) |
| Bed Length | 183 in. (4,648.2 mm) |
| Bed Width | 15.75 in. (400.05 mm) |
| Quill Diameter | 3 in. (76.2 mm) |
| Quill Travel | 6.5 in. (165.1 mm) |
| Quill Center Taper | MT #5 |
| Spindle Motor | 15 HP (11.18 kW) |
| Phase | 3 phase |
| Power Consumption (230 V) | 16 KVA / 45 amps |
| Power Consumption (460 V) | 16 KVA / 22.5 amps |
| Approximate Weight | 10,802 lbs (4,899.7 kg) |
| Dimensions (L×W×H) | 18.83 × 3.41 × 4.33 ft (5.73 × 1.03 × 1.31 m) |
Standard Equipment
- 4-jaw 16″ chuck, face plate (20″)
- Steady rest (4″ – 11.5″), 4 ways tool post
- Coolant system, halogen light • 4-way carriage stop
- Splash guard & 16″ chuck guard
- Tailstock, follow rest, tool kit
- Rapid transverse on longitudinal (on 100″centers distance and up only)
- Wired 220V or 440vV
Optional Add-Ons
Call for Price
- 3-jaw chuck, different sizes
- 4-jaw chuck, different sizes
- Taper attachment
- Chuck guard w/ limit switch
- Tool guard w/ limit switch,at front of compound
- Lead screw wrapped around screw (accordion style)
- Lead screw guard, cover entire front of machine bed
- Safety cover at the end of spindle
- UL or CSA electrical components, UL spindle motor, CSA pump motor
- Steady rest
- Quick change tool holder (aloris) (7 pcs holder) 1.25″ tool
- Live center – (dual bearing) MT #5
- 5C lever collet closer
- 5C collet set (1/8 to 1/16″ x 1/16″) (16 pcs) • Micrometer carriage stop
- Roller jaws set (3 pc)
