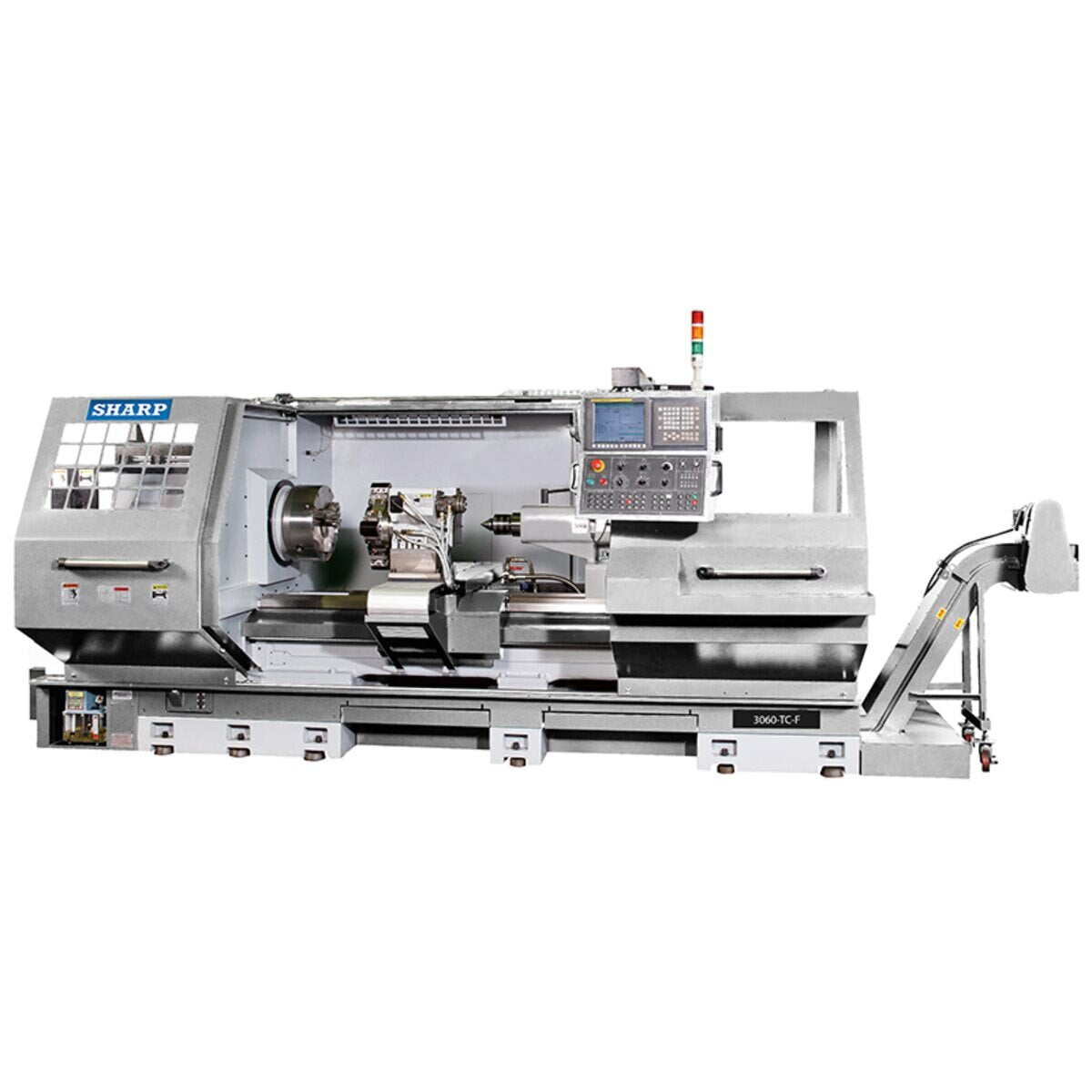

Sharp Industries 30" Swing X 60" Between Centers CNC/Manual Lathe, Fanuc Control , A2-11, 6.7 " Bore 3060-TC-F
$132,300.00
This is a user friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
- FANUC Oi-TF CNC , 10.4” LCD screen
- 30” swing, 79” between centers (3080 Oi-TF)
- A2-11 , 6.7” spindle bore,
- 20 HP motor
- 2 steps gear speed change (10-1,000 rpm)
- programmable spindle speed
- Electronic Handwheel (MPG)
- 8 positions hydraulic turret ( 4 internal, 4 external)
- Auto lube system
Specifications and Manual
| Specification | Value |
|---|---|
| Swing Over Bed | 29.92 in. (760 mm) |
| Swing Over Cross Slide | 19 in. (480 mm) |
| Turning Diameter (in front of cross slide with 8-station turret turning tool) | 22 in. (558.8 mm) |
| Distance Between Centers | 59 in. (1,500 mm) |
| Width of Bed | 18 in. (460 mm) |
| Length of Bed | 118 in. (3,500 mm) |
| Center Height | 15 in. (380 mm) |
| Bed Casting Height | 15.75 in. (400 mm) |
| Bed Way | One flat and V |
| Bed Way of Cross Slide | Dovetail slide way |
| Spindle Bore | 6.7 in. (170 mm) |
| Spindle Nose | A2-11 |
| Range of Spindle Speed | 10–1,000 rpm |
| Number of Spindle Speeds | 2 steps/auto-selected gear ranges |
| X-Axis Cross Slide Travel | 19.68 in. (500 mm) |
| Z-Axis (Longitudinal) Travel | 59 in. (1,500 mm) |
| X-Axis Ball Screw Diameter | 1.25 in. (32 mm) |
| Z-Axis Ball Screw Diameter | 1.96 in. (50 mm) |
| X/Z-Axis Rapid Feed | 1,394 ipm (10,000 mm/min) |
| X/Z-Axis Cutting Feed Rate | 118.11 ipm (3,000 mm/min) |
| Turret | Hydraulic 8-position turret LS 200 with 4 internal and 4 external tool wedges |
| Tool Shank/Number | 1 × 1 in. (25.4 × 25.4 mm) |
| Boring Bar Diameter | 1.5 in. (38.1 mm) |
| Tailstock Quill Diameter | 5 in. (125 mm) |
| Tailstock Quill Travel | 7.87 in. (200 mm) |
| Taper of Center | MT 6 |
| Spindle Motor | 20 HP (14.91 kW) |
| X-Axis Servo Motor | 2 HP (1.6 kW) |
| Z-Axis Servo Motor | 4 HP (3 kW) |
| Hydraulic Pump Motor | 2 HP (1.5 kW) |
| Coolant Pump | 0.75 HP (0.55 kW) |
| Power Consumption | 28 KVA |
| Net Weight | 9,240 lbs (4,191 kg) |
| Machine Dimensions (L×W×H) | 13.83 × 6.56 × 5.91 ft (4.21 × 1.99 × 1.80 m) |
Standard Equipment
- Flat belt type chip conveyor
- Full enclosure splash guard
- 16” 3 jaw chuck
- Air assist manual tailstock
- Stead rest (3”-8”)
- High pressure coolant system
- Rear chuck guard
- Electrical box to suit CNC Turning Control
- 8 positions turret programmable tool post (4 internal, 4 external)
- Incandescent Work Lamp
- Electronic handwheel (MPG) X & Y Axis
Optional Add-Ons
Call for Price
- Transformer (28 KVA) $
- Steady rest with bearing (grip range
- Follow up rest (0.4” – 5.5”)
- Follow up rest (10”- 18”)
- Hydraulic tailstock with foot padel in lieu of manual tailstock
- Boring attachment
- 20” 3 jaw chuck, A2-15 with back plate
- 10” bore in lieu of 6.5” bore
- 20” 3-jaw chuck A2-15, 255 mm through hole with back plate
- Spindle chiller
