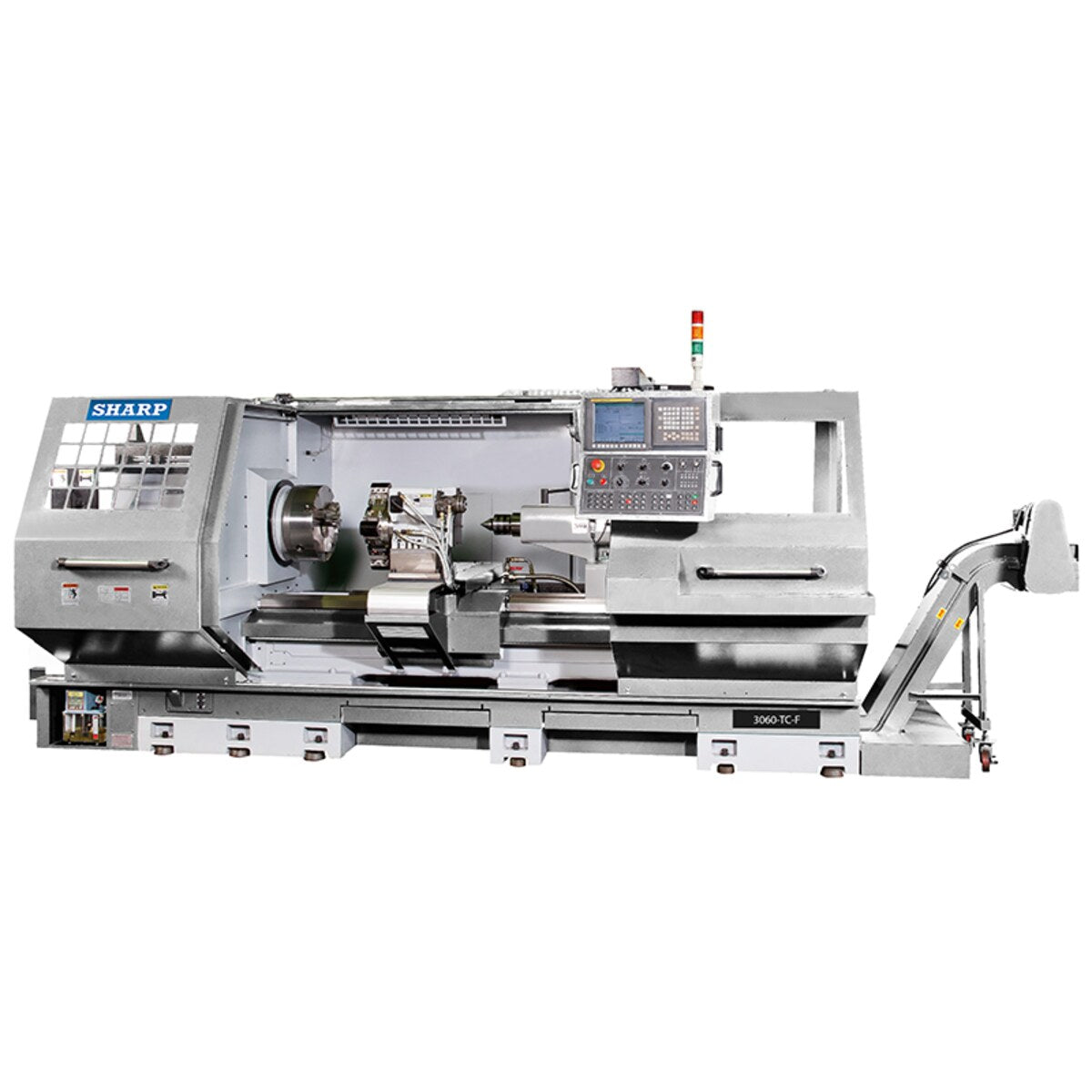

Sharp Industries 30" Swing X 80" Between Centers CNC/Manual Lathe, Fanuc Control , A2-11, 6.7 " Bore 3080-TC-F
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$154,400.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a user friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
- FANUC Oi-TF CNC , 10.4” LCD screen
- 30” swing, 79” between centers (3080 Oi-TF)
- A2-11 , 6.7” spindle bore,
- 20 HP motor
- 2 steps gear speed change (10-1,000 rpm)
- programmable spindle speed
- Electronic Handwheel (MPG)
- 8 positions hydraulic turret ( 4 internal, 4 external)
- Auto lube system
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity | ||
| Swing Over Bed | 29.92 in. | 760 mm |
| Swing Over Cross Slide | 19 in. | 480 mm |
| Turning Diameter (in front of cross slide with 8‑station turret) | 22 in. | 558.8 mm |
| Distance Between Centers | 78.75 in. | 2,000 mm |
| Width of Bed | 18 in. | 460 mm |
| Length of Bed | 137.75 in. | 3,500 mm |
| Center Height | 15 in. | 380 mm |
| Bed Casting Height | 15.75 in. | 400 mm |
| Bed Way | one flat and V | one flat and V |
| Cross‑Slide Way | Dovetail slide way | Dovetail slide way |
| Headstock | ||
| Spindle Bore | 6.7 in. | 170 mm |
| Spindle Nose | A2‑11 | A2‑11 |
| Range of Spindle Speed | 10–1,000 rpm | 10–1,000 rpm |
| No. of Spindle Speeds | 2 steps / auto‑selected gear ranges | |
| Travel | ||
| X‑Axis Cross‑Slide Travel | 19.68 in. | 500 mm |
| Z‑Axis Longitudinal Travel | 78.75 in. | 2,000 mm |
| X‑Axis Ball Screw Diameter | 1.25 in. | 32 mm |
| Z‑Axis Ball Screw Diameter | 1.96 in. | 50 mm |
| Feed | ||
| X/Z‑Axis Rapid Feed | 1,394 ipm | 10,000 mm/min |
| X/Z‑Axis Cutting Feed Rate | 118.11 ipm | 3,000 mm/min |
| Turret | ||
| Hydraulic 8‑position turret LS 200 with 4× internal tool holders and 4× external tool wedges | ||
| Tool Shank / Number | 1×1 in. | 25.4×25.4 mm |
| Boring Bar Diameter | 1.5 in. | 38.1 mm |
| Tailstock | ||
| Quill Diameter | 5 in. | 125 mm |
| Quill Travel | 7.87 in. | 200 mm |
| Taper of Center | MT 6 | MT 6 |
| Motor | ||
| Spindle Motor | 20 HP | 14.91 kW |
| X‑Axis Servo Motor | 2 HP | 1.6 kW |
| Z‑Axis Servo Motor | 4 HP | 3 kW |
| Hydraulic Pump Motor | 2 HP | 1.5 kW |
| Coolant Pump | 0.75 HP | 0.55 kW |
| Power Consumption | 28 KVA | 28 KVA |
| Dimensions & Weight | ||
| Net Weight | 10,120 lbs. | 4,590 kg |
| Machine Dimensions (L × W × H) | 15.41 × 6.56 × 5.91 ft. | 4.69 × 1.99 × 1.80 m |
Standard Equipment
- Flat belt type chip conveyor
- Full enclosure splash guard
- 16” 3 jaw chuck
- Air assist manual tailstock
- Stead rest (3”-8”)
- High pressure coolant system
- Rear chuck guard
- Electrical box to suit CNC Turning Control
- 8 positions turret programmable tool post (4 internal, 4 external)
- Incandescent Work Lamp
- Electronic handwheel (MPG) X & Y Axis
Optional Add-Ons
Call for Price
- Transformer (28 KVA) $
- Steady rest with bearing (grip range
- Follow up rest (0.4” – 5.5”)
- Follow up rest (10”- 18”)
- Hydraulic tailstock with foot padel in lieu of manual tailstock
- Boring attachment
- 20” 3 jaw chuck, A2-15 with back plate
- 10” bore in lieu of 6.5” bore
- 20” 3-jaw chuck A2-15, 255 mm through hole with back plate
- Spindle chiller
