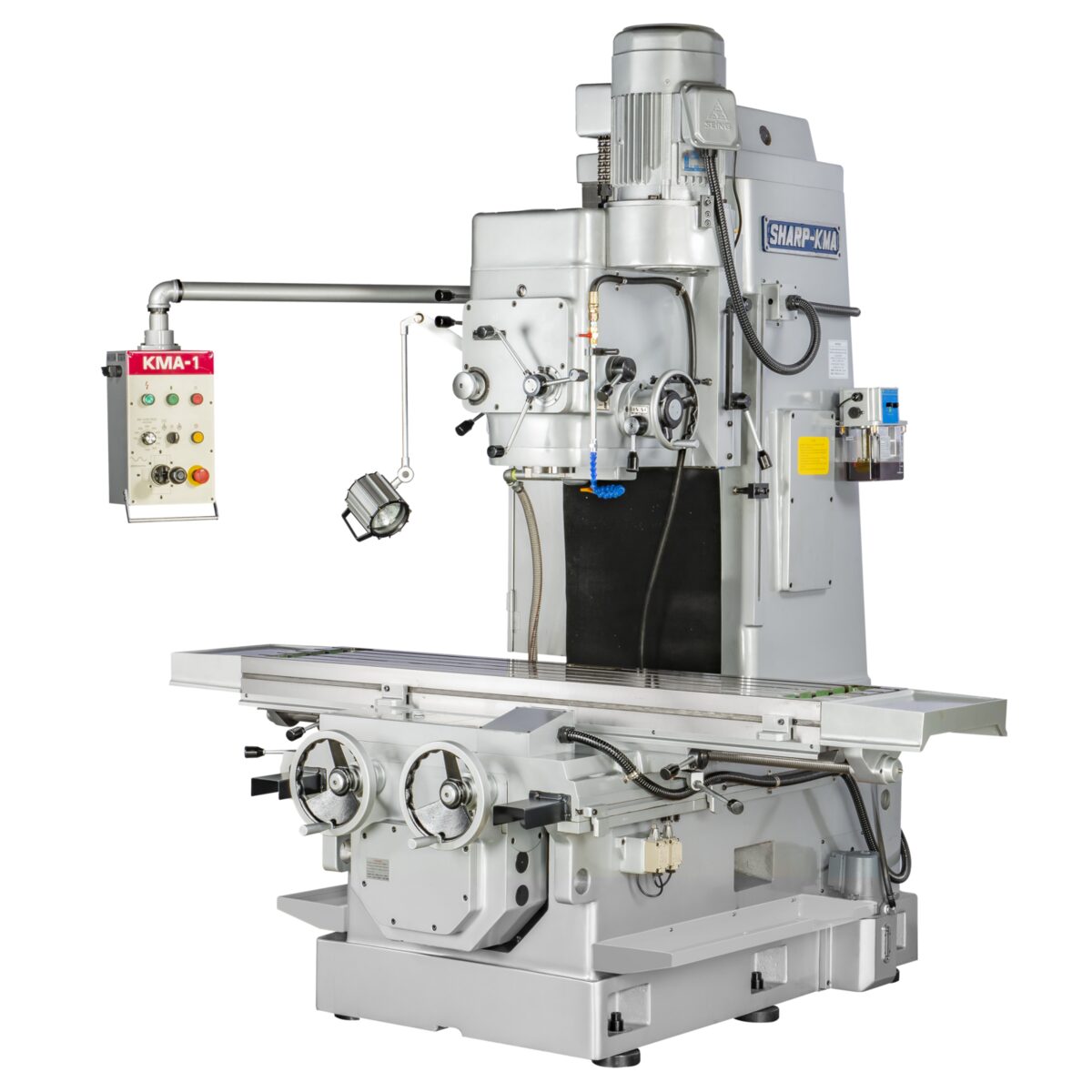

Sharp Industries 15" x 67" Bed Type Vertical Milling Machine KMA-1
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$67,570.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Bed type vertical mills are ideal for milling large work piece or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20” that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.
- 15” x 67” table, 15” x 39” travel
- Vertical head travel 20”, fixed quill
- NST #50 taper spindle, 10 HP motor
- Hardened and ground box ways
- Fully ribbed castings on column, table and saddle to make it a rigid structure
- Double nut backlash eliminator
- Eye-level lever control for vertical head rapid traverse
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity & Travels | ||
| Table Size | 14.93″ × 67″ | 379.2 × 1701.08 mm |
| T‑slots (No. × W × Pitch) | 5 × 0.75″ × 2.75″ | 5 × 19.05 × 69.85 mm |
| X Longitudinal Travel | 39.37″ | 1000 mm |
| Y Cross Travel | 14.93″ | 379.22 mm |
| Vertical Head Travel | 19.68″ | 499.87 mm |
| Spindle Center to Column | 14.93″ | 379.22 mm |
| Spindle Nose to Table | 3.93–23.62″ | 99.82–599.94 mm |
| Table Feeds & Rapids | ||
| Longitudinal Feeds (Variable) | 1.12–39.37 ipm | 26–1000 mm/min |
| Longitudinal Rapids | 110 ipm | 2800 mm/min |
| Cross Feeds (Variable) | 1.12–39.37 ipm | 26–1000 mm/min |
| Cross Rapids | 110 ipm | 2800 mm/min |
| Vertical Head | ||
| Spindle Taper | NST #50 | — |
| Spindle Speeds | 45–1500 rpm | — |
| Vertical Head Travel | 19.68″ | 500 mm |
| Vertical Head Feeds | 0.002–0.008 in/rev | 0.05–0.2 mm/rev |
| Motors & Coolant | ||
| Vertical Spindle | 5 HP | 3.7 kW |
| Table Feed & Rapid | 1.74 HP | 1.3 kW |
| Coolant System | 0.125 HP | 0.093 kW |
| General | ||
| Floor Area (W × D × H) | 10.5 × 6.56 × 7.90 ft | 3.2 × 1.9 × 2.4 m |
| Approximate Weight | 8,800 lbs | 4000 kg |
| Power Consumption (220 V) | 30 amps | — |
| Power Consumption (440 V) | 15 amps | — |
Standard Equipment
- Coolant system
- Auto lubrication system
- Draw-in bolt (1 pc)
- Tool box
- Wired 220V or 440V
Optional Add-Ons
- Power drawbar w/ foot pedal control
- 6 in. “KURT” vise with swivel base D688
- Halogen work light
- 30 in. travel in z axes in lieu of 20 in.
