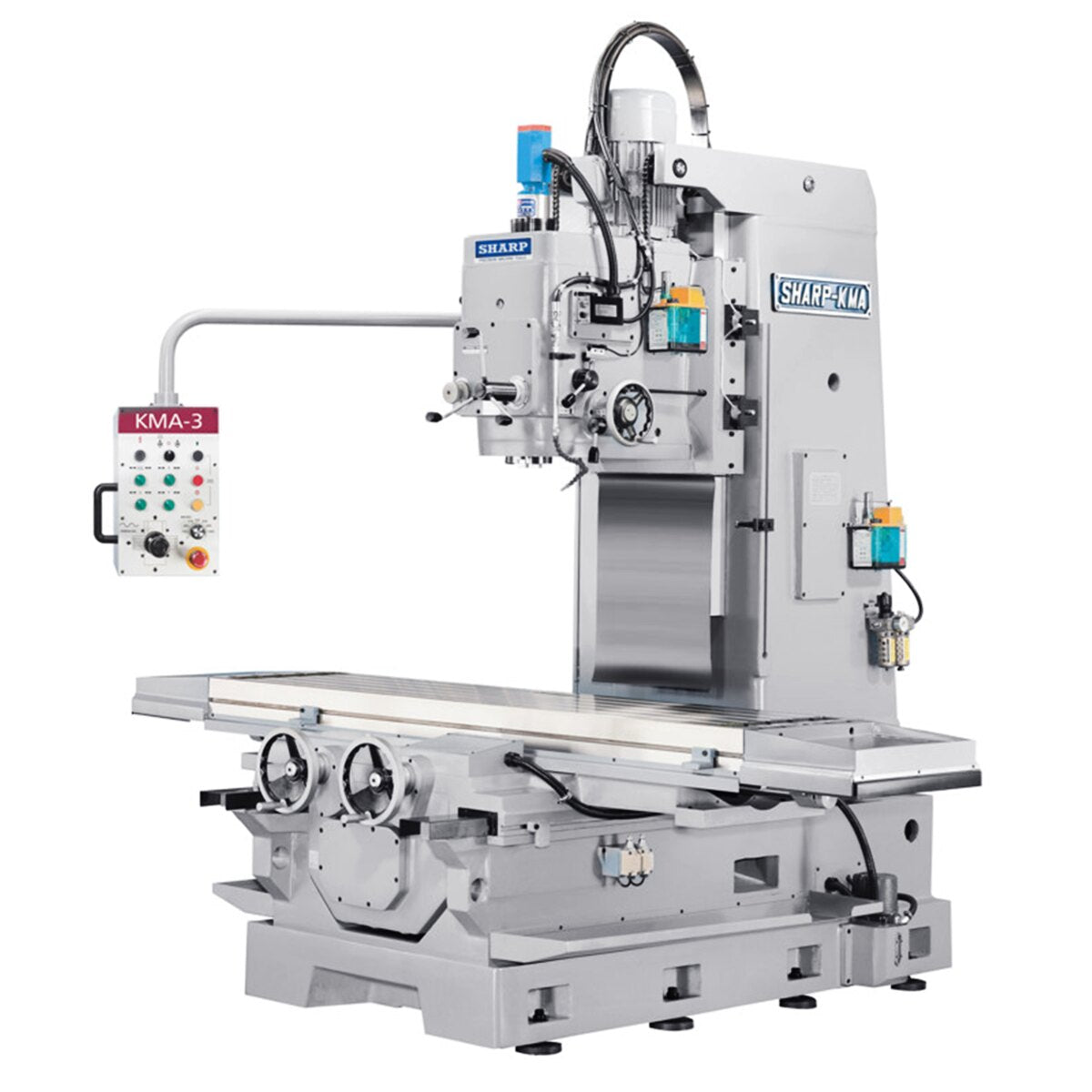

Sharp Industries 20" x 87" Bed Type Vertical Milling Machine KMA-3
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$99,350.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Bed type vertical milling machines are ideal for milling large work piece or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20” that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.
- 20” x 87” table, 24” x 59” travel
- Vertical head travel 27.6”, fixed quill
- NT #50 taper spindle, 17.5 HP motor
- Hardened and ground box ways
- Fully ribbed castings on column, table and saddle to make it a rigid structure
- Double nut backlash eliminator
- Eye-level lever control for vertical head rapid traverse
- Built-in coolant tank
- 4 way toggle control of table rapids
- Pneumatic locks on spindle, table saddle
- Variable speed feed on table, saddle
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity & Travels | ||
| Table Size | 86.62″ × 19.68″ | 2200.14 × 499.87 mm |
| T‑slots (No. × W × Pitch) | 5 × 0.75″ × 3.56″ | 5 × 19.05 × 90.42 mm |
| X Longitudinal Travel | 59″ | 1498.6 mm |
| Y Cross Travel | 23.62″ | 599.94 mm |
| Vertical Head Travel | 27.56″ | 700.02 mm |
| Spindle Center to Column | 21.62″ | 549.14 mm |
| Spindle Nose to Table | 3.93–31.5″ | 99.82–800.1 mm |
| Table Feeds & Rapids | ||
| Longitudinal Feeds (Variable) | 1.12 in. | 28.44 mm |
| Longitudinal Rapids | 130 in. | 3302 mm |
| Cross Feeds (Variable) | 39.37 in. | 1000 mm |
| Cross Rapids | 130 in. | 3302 mm |
| Vertical Head | ||
| Spindle Taper | No. 50 | — |
| Spindle Speeds | 45–1500 rpm | — |
| Vertical Head Feeds | 0.002–0.008 in. | 0.05–0.2 mm |
| Motors & Coolant | ||
| Vertical Spindle | 20 HP | 14.9 kW |
| Table Feed & Rapid | 2 HP | 1.5 kW |
| Coolant System | 1.12 HP | 0.83 kW |
| General | ||
| Floor Area (W × D × H) | 14.58 × 8.33 × 9.41 ft | 4.44 × 2.53 × 2.86 m |
| Approximate Weight | 15,400 lbs | 6985.32 kg |
| Power Consumption (220 V) | 60 amps | — |
| Power Consumption (440 V) | 30 amps | — |
Standard Equipment
- Coolant system
- Auto lubrication system
- Draw-in bolt (1 pc)
- Tool box
- Wired 220V or 440V
Optional Add-Ons
- Power drawbar w/ foot pedal control
- 6 in. “KURT” vise with swivel base D688
- Halogen work light
- 30 in. travel in z axes in lieu of 20 in.
