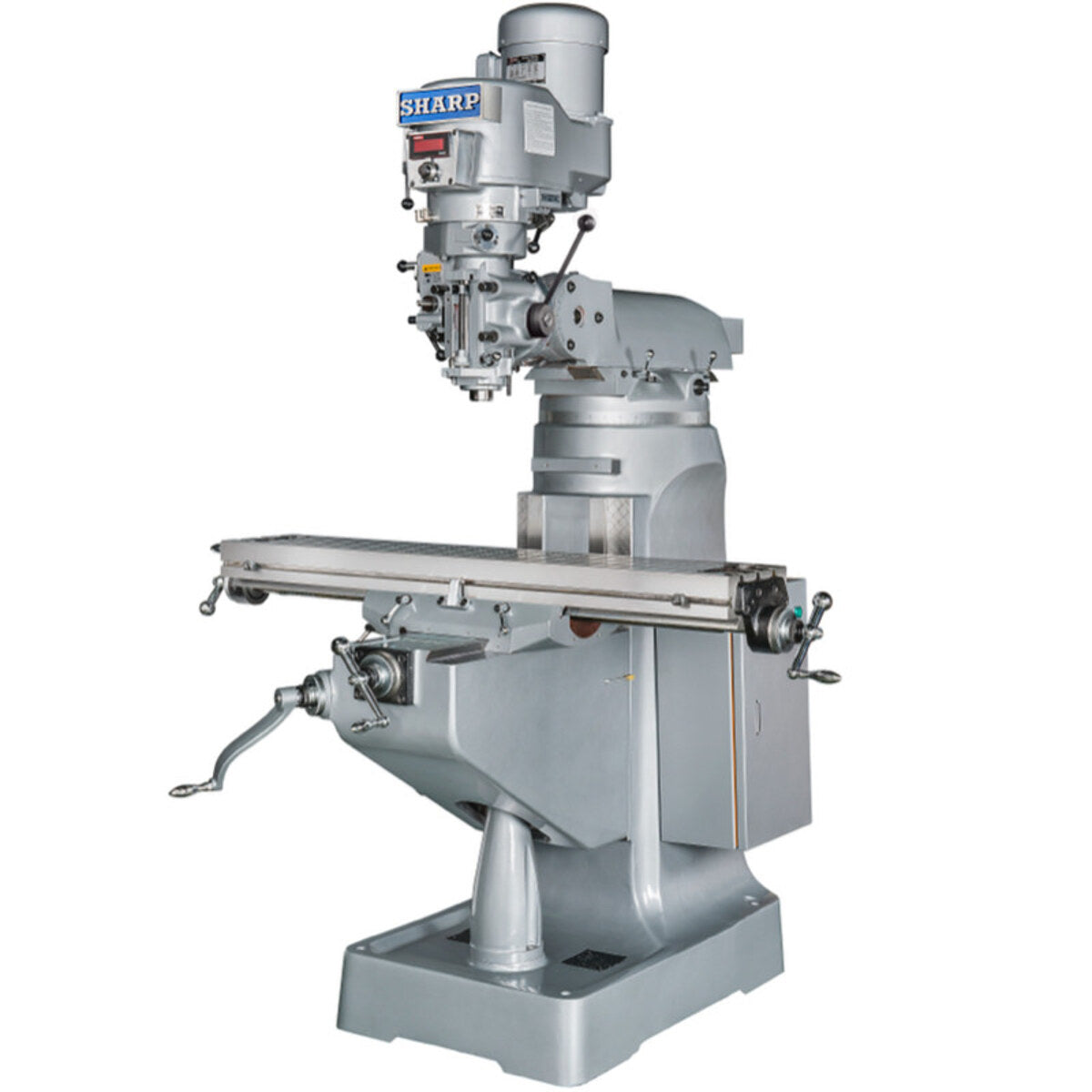

Sharp Industries 9" x 49" Knee Milling Machine LMV-49-DVS
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
This model is equipped with Digital Variable Speed for easy change of spindle speeds.
The model has many unique features compared with most of the similar machines on the market. The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed. Tapered gibs installed on the ways allows easy adjustment for long term usage. The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle. The bottom of the saddle, instead of the top of the knee ways, which rides on the knee is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
- 9 x 49 ins table, 12 x 36.6 in. travel
- Digital Vari speed (DVS), speed change by turning a knob, with digital display of spindle speed
- R-8 spindle, 3 hp , speed (60-4,500 rpm)
- Spindle runout of no more than 0.0002 ins TIR
- Hard chromed ways provide long wear resistance
- Head tilt side to side, up and down
- One shot lubrication with back flow valve
- Tapered gibs for adjustment
- Dual clamps on knee and saddle that locks the knee and table evenly to the column and saddle to avoid skewing. Handles on the clamp are adjustable to 12 different positions.
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity | ||
| Table Size | 9 × 49 in. | 230 × 1244 mm |
| T-slots (No., Size, Pitch) | 3, 5/8, 2.5 in. | 3, 16, 63.5 mm |
| Table Travel: X Longitudinal | 36.6 in. | 929 mm |
| Table Travel: Y Cross | 12 in. | 304 mm |
| Quill Travel: Z Vertical | 5 in. | 127 mm |
| Knee Travel: Vertical | 16 in. | 406 mm |
| Ram Travel | 12 in. | 304.8 mm |
| Spindle Center to Column | 6.75–18.5 in. | 171–470 mm |
| Spindle Nose to Table Top | 2.125–18 in. | 3.1–457 mm |
| Head & Spindle | ||
| Spindle Nose Taper | R-8 | R-8 |
| Spindle Variable Speed Range | 65–4500 rpm | 65–4500 rpm |
| Spindle Motor (220V/440V) | 3 HP | 2.25 KW |
| Quill Feed (Inch/Rev) (3 speeds) | 0.0015, 0.003, 0.006 in. | 0.038, 0.076, 0.152 mm |
| Quill Diameter | 3.375 in. | 85.7 mm |
| Head Swivel Angle | 360° | |
| Head Tilt Angle (L/R) | 45° | |
| Head Tilt Angle (Up/Down) | 45° | |
| General | ||
| Floor Area (W × D × H) | 7 × 6.5 × 6.75 ft. | 2.1 × 2 × 2 m |
| Approximate Weight | 2,100 lbs. | 952 kg |
| Power Consumption (220V) | 3 KVA / 8 amps | |
| Power Consumption (440V) | 3 KVA / 4 amps | |
Standard Equipment
- One Shot Lube System
- Hard-Chromed Ways
- Front and Rear Rubber Way Covers
- Tool box with tools
- Wired 220V or 440V.
Optional Add-Ons
Call for Price
- Auto Lube Pump with 2 Adjustments
- “Sharp” Power Table Feed with Safety Handle
- “Sharp” Power Cross Feed with Safety Handle
- “Sharp” Power Knee Feed with Safety Handle
- 6 in. “Kurt” Vise with Swivel Base
- Right Angle Milling Attachment with Arbor
- Drill Chuck & Drill Arbor
- 6 in. Riser Block
- Coolant System with Chip Pan (pump included
- “Maxi Torque Rite” Power Draw Bar
- Clamping Kit (52 pcs/Steel Rack)
- Halogen Work light
- CE mark
- 380V and 575V transformer
- UL components upgrade with electrical box
- UL compliance certificate under State of California
- Digital Readout System
