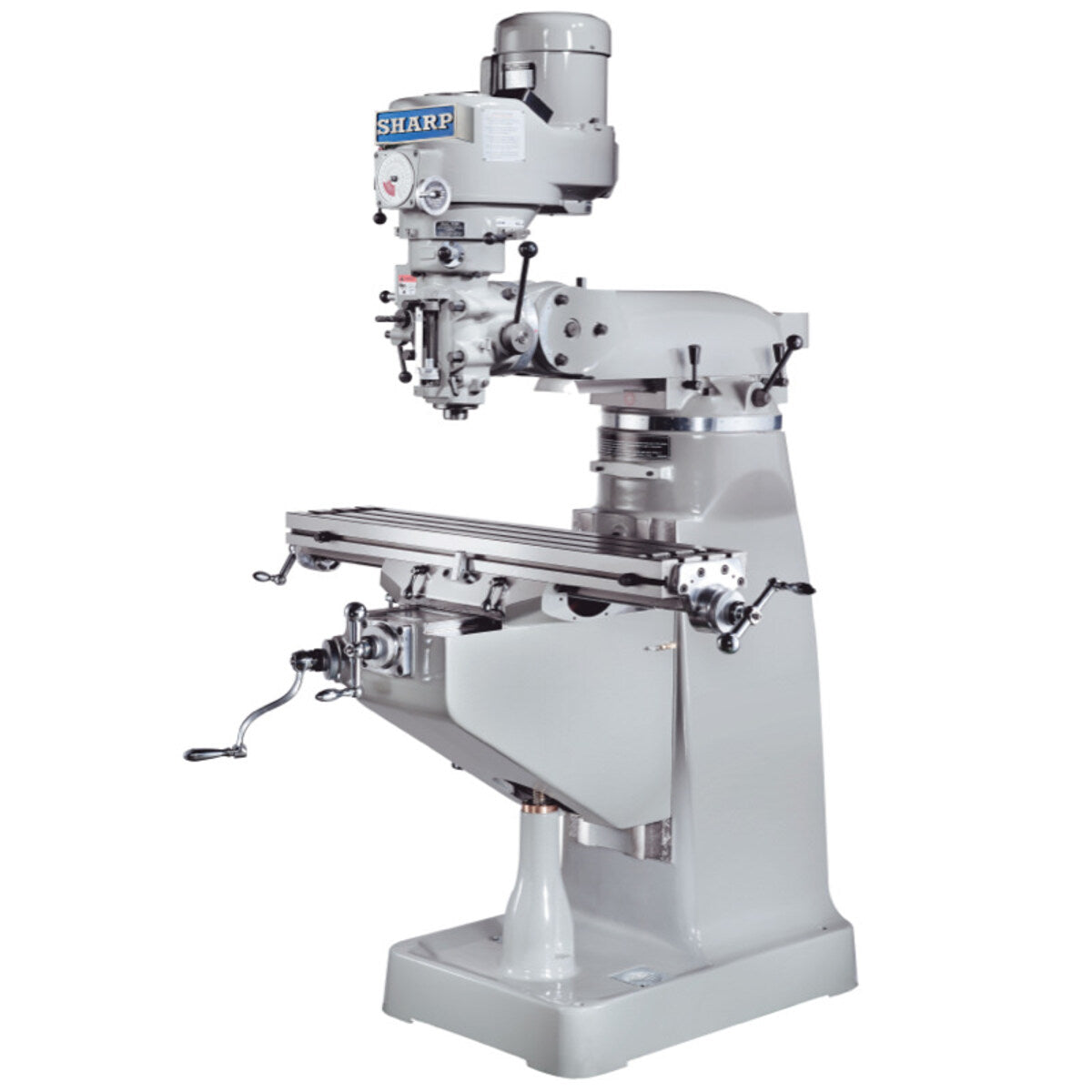

Sharp Industries 9" x 50" Knee Milling Machine Variable Speed Drive LMV-50
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$13,400.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This model has many unique features compared with most of the other similar machines on the market.
The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed.
Tapered gibs installed on the ways allows easy adjustment for long term usage..
The bottom of the saddle, instead of the top of the knee ways, which rides on the knee, is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways.
- 9 x 50 ins table, 12 x 37 in. travel
- R-8 spindle, 3 hp , variable speed (60-4,500 rpm)
- Spindle runout of no more than 0.0002” TIR
- Hardened & Ground Ways for X, Y, and Z Axis, Turcite B Coating will be included on X and Y gib for additional oil retention and longer wear resistance
- Head tilt side to side, up and down
- One shot lubrication with back flow valve
- Tapered gibs for adjustment
- Dual clamps on knee and saddle that locks the knee and table evenly to the column and saddle to avoid skewing. Handles on the clamp are adjustable to 12 different positions.
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity | ||
| Table Size | 9 × 50 in. | 230 × 1270 mm |
| T‑slots (No., Size, Pitch) | 3, 5/8, 2.5 in. | 3, 16, 63.5 mm |
| Table Travel: X Longitudinal | 37 in. | 940 mm |
| Table Travel: Y Cross | 12 in. | 304 mm |
| Quill Travel: Z Vertical | 5 in. | 127 mm |
| Ram Travel | 12 in. | 304.8 mm |
| Knee Travel: Vertical | 16 in. | 406 mm |
| Spindle Center to Column | 6.75–18.5 in. | 171–470 mm |
| Spindle Nose to Table Top | 2.125–18 in. | 3.1–457 mm |
| Head & Spindle | ||
| Spindle Nose Taper | R‑8 | R‑8 |
| Spindle Variable Speed Range | 60–4500 rpm | 60–4500 rpm |
| Spindle Motor (220V/440V) | 3 HP | 2.25 Kw |
| Quill Feed (3 speeds) | 0.0015, 0.003, 0.006 in. | 0.038, 0.076, 0.152 mm |
| Head Swivel Angle | 360° | 360° |
| Head Tilt Angle (L/R) | 45° | 45° |
| Head Tilt Angle (Up/Down) | 45° | 45° |
| General | ||
| Floor Area (W × D × H) | 8.8 × 5.6 × 6.8 ft. | 2.6 × 1.7 × 2 m |
| Approximate Weight | 2,500 lbs. | 1,133 Kg |
| Power Consumption (220V) | 3 KVA / 8 amp | 3 KVA / 8 amp |
| Power Consumption (440V) | 3 KVA / 4 amp | 3 KVA / 4 amp |
Standard Equipment
- One Shot Lube System
- Hard-Chromed Ways
- Front and Rear Rubber Way Covers
- Tool box with tools
- Wired 220V or 440V.
Optional Add-Ons
Call for Price
- Auto Lube Pump with 2 Adjustments
- “Sharp” Power Table Feed with Safety Handle
- “Sharp” Power Cross Feed with Safety Handle
- “Sharp” Power Knee Feed with Safety Handle
- 6 ins “Kurt” Vise with Swivel Base
- Right Angle Milling Attachment with Arbor
- Drill Chuck & Drill Arbor
- 6 in. Riser Block
- Coolant System with Chip Pan (pump included
- “Maxi Torque Rite” Power Draw Bar
- Clamping Kit (52 pcs/Steel Rack)
- Halogen Work light
- CE mark
- 380V and 575V transformer
- UL components upgrade with electrical box
- UL compliance certificate under State of California
- Digital Readout System
