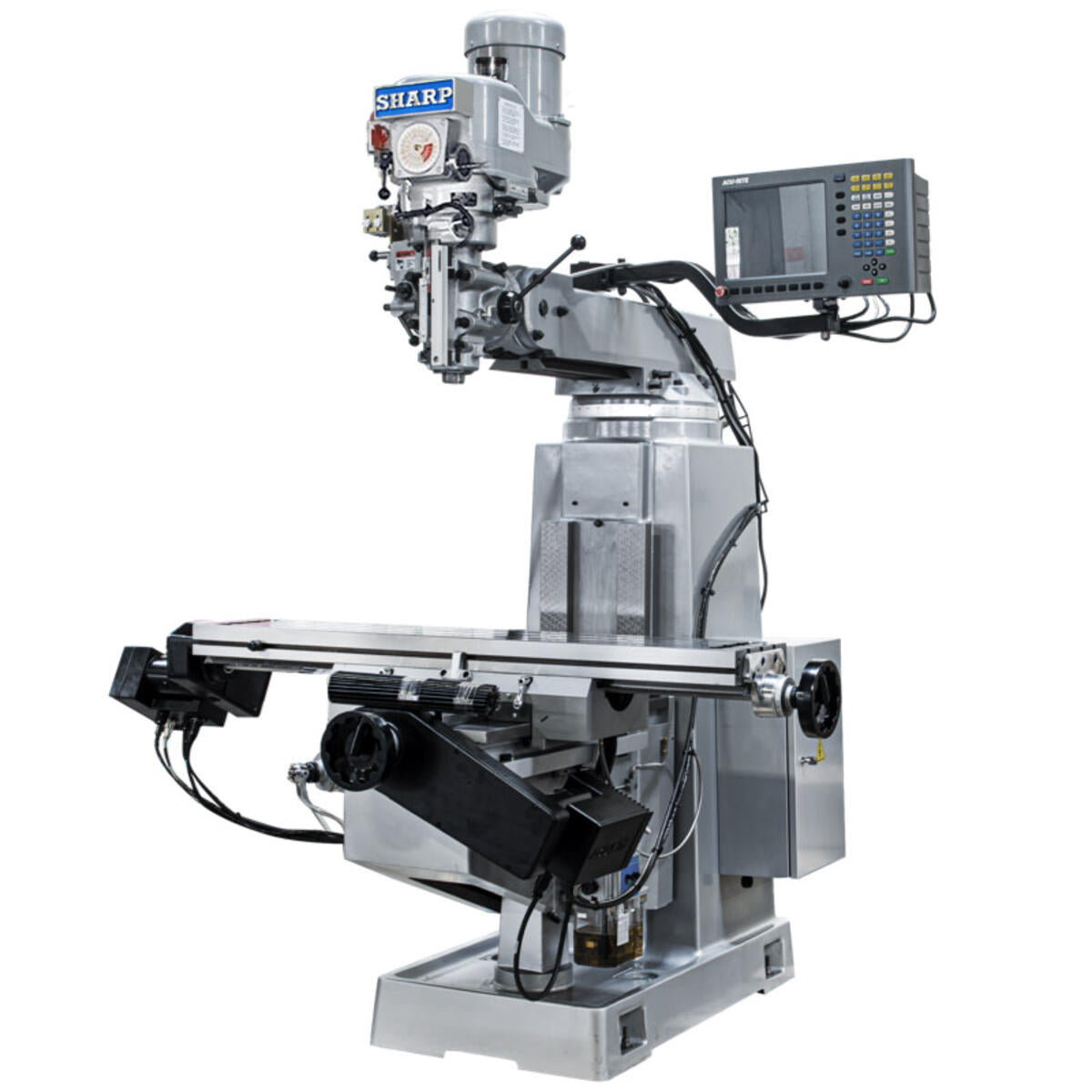

Sharp Industries 10" x 54" 2-Axis CNC Knee Type Milling Machine TMV-MP-2
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$49,550.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a simple, easy to use 2 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming. The CNC system is built on the top quality SHARP vertical mills frame.
- 10 x 54” table, 15.5 x 31x 5” travel, vari speed 3 HP, R-8 spindle
- AcuRite Millpwr G2 CNC 2 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 2 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Capacity | ||
| Table Size | 10 × 54 in. | 254 × 1,371 mm |
| T‑slots (No. × Size × Pitch) | 3 × 0.625 × 2.5 in. | 3 × 15.875 × 63.5 mm |
| Table Travel: X Longitudinal | 31 in. | 787 mm |
| Table Travel: Y Cross | 15.5 in. | 393 mm |
| Quill Travel: Z Vertical | 5 in. | 127 mm |
| Ram Travel | 18.5 in. | 470 mm |
| Knee Travel: Vertical | 15.3 in. | 390 mm |
| Spindle Center to Column | 13–31.5 in. | 330–800 mm |
| Spindle Nose to Table Top | 6.5–22.4 in. | 165–570 mm |
| Head & Spindle | ||
| Spindle Nose Taper | R‑8 | R‑8 |
| Spindle Variable Speed Range | 60–4500 rpm Digital Variable Speed | 60–4500 rpm Digital Variable Speed |
| Spindle Motor (220V/440V) | 3 HP | 2.25 KW |
| Quill Feed (Inch/Rev) (3 speeds) | 0.0015 / 0.003 / 0.006 in. | 0.04 / 0.08 / 0.16 mm |
| Quill Diameter | 3.5 in. | 90 mm |
| Head Tilt Angle (L/R) | 90° | 90° |
| Head Tilt Angle (Up/Down) | 45° | 45° |
| General | ||
| Floor Area (W × D × H) | 6.9 × 6.6 × 9 ft. | 1.8 × 1.7 × 2.3 m |
| Approximate Weight | 3,500 lbs. | 1,587 kg |
| Power Consumption (220V) | 3 KVA / 8 amp | 3 KVA / 8 amp |
| Power Consumption (440V) | 3 KVA / 4 amp | 3 KVA / 4 amp |
Standard Equipment
- Millpwr G2 2 axes CNC system
- 2 axes ball screws and servo drives
- Auto lube system
- 3 axes Digital Readout system
- Cross Way cover
Optional Add-Ons
Call for Price
- NT-30 SPINDLE IN LIEU OF NT-40
- Acu-Rite electrical edge finder
- 6” “Kurt” Vise with Swivel Base
- Drill chuck
- Sharp Power Kneel
- Coolant System with Chip Pan At Base
- Power Draw Bar
- R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
- Clamping Kit (52 pcs/steel rack)
- Halogen Work light
- Riser block 6
- 440 V transformer
- 4th axes Digital Readout System (on knee)
