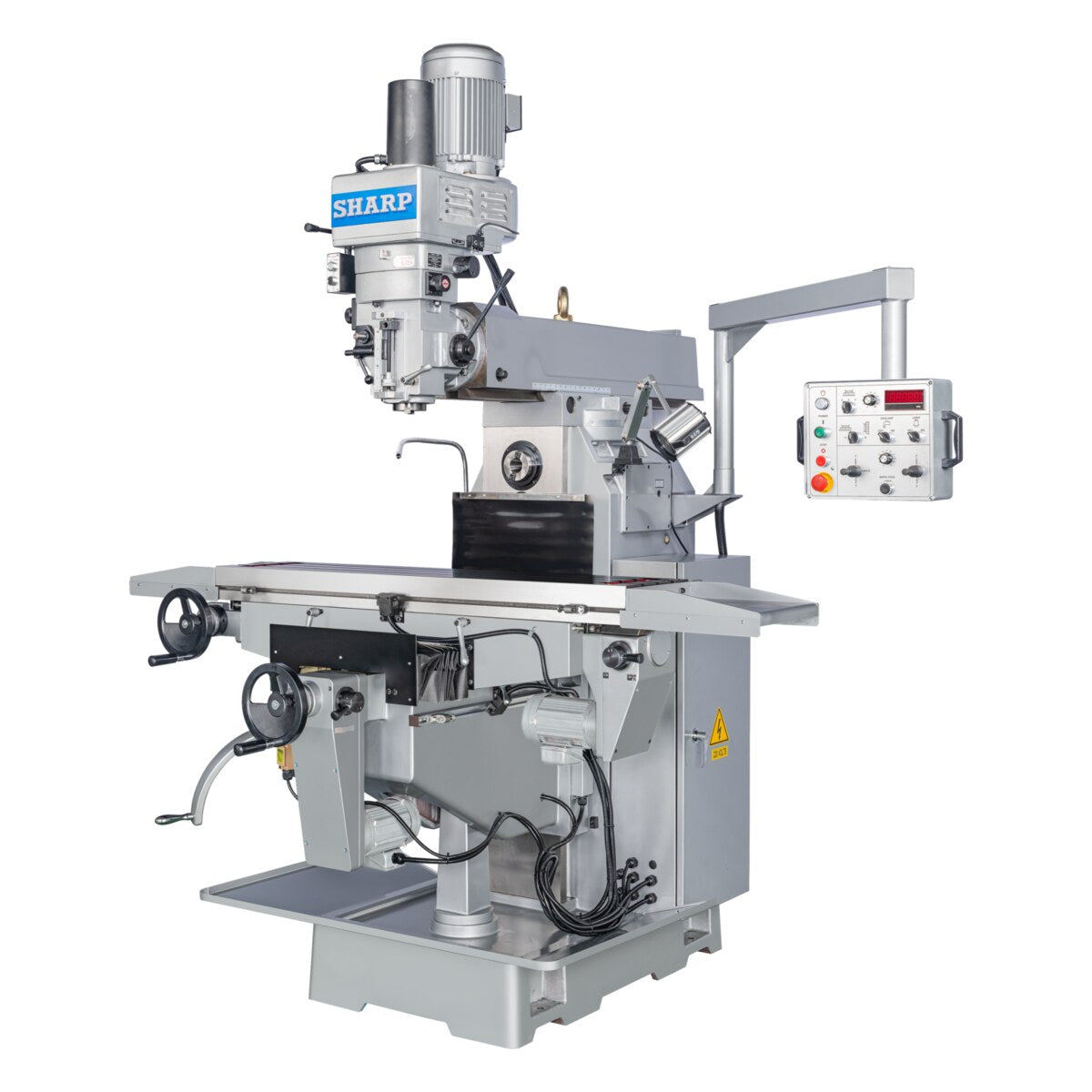

Sharp Industries 12" x 54" Vertical/Horizontal Knee Mill, Variable Speed VH-25-DVS
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$40,600.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a versatile machine with 2 spindles, vertical and horizontal. By taking out the locating pins and swivel the overarm to the desired position it can switch between vertical and horizontal milling operations. It allows the work piece to stay at the same fixed position and perform various milling works. Thus it avoids losing accuracy due to the loading and unloading of work piece.
- 11.81 x 53.93 ins table, 16.5 x 36 ins travel
- 5 hp, NST #40 vertical and horizontal spindle
- Built-in gear driven table, saddle
- Rapids on knee for positioning
- Easy switch between vertical and horizontal head
- Hardened and ground box ways
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Table Size | 11.81 × 53.93 in. | 1370 × 300 mm |
| T‑slots (No. × Width × Pitch) | 3 × 5/8 × 2.75 in. | 3 × 16 × 70 mm |
| Table Travel: X Longitudinal | 39.4 in. | 1000 mm |
| Table Travel: Y Cross | 15.7 in. | 400 mm |
| Ram Travel | 27.5 in. | 700 mm |
| Knee Travel: Vertical | 18.5 in. | 470 mm |
| Ram Swivel | 360° | |
| Table Feeds & Rapids | ||
| Longitudinal Feeds (12 speeds) | 1.18–39.37 in./min. | 30–1000 mm/min |
| Longitudinal Rapids | 1.18–39.37 in./min. | 30–1000 mm/min |
| Vertical Rapids | 1.96–31.5 in./min. | 50–800 mm/min |
| Vertical Spindle | ||
| Spindle Taper | NST #40 | NST #40 |
| Spindle Speeds (Variable) | 60–4,500 rpm | 60–4,500 rpm |
| Spindle Motor | 5 HP | 3.7 Kw |
| Quill Travel | 5.51 in. | 140 mm |
| Quill Feeds | 0.0015, 0.003, 0.006 in./min. | 0.04, 0.08, 0.15 mm/min. |
| Quill Diameter | 4.13 in. | 105 mm |
| Spindle Center to Column | 7.08–34.64 in. | 180–880 mm |
| Spindle Nose to Table | 3.93–22.44 in. | 100–570 mm |
| Vertical Head Swivel (L to R) | 90° | |
| Vertical Head Tilt (Up and Down) | 45° | |
| Horizontal Spindle | ||
| Spindle Nose Taper | NST #40 | NST #40 |
| Spindle Speed Range | 60–1400 rpm | 60–1400 rpm |
| Spindle Motor | 5 HP | 3.72 Kw |
| Spindle Centerline to Table | 0–16.53 in. | 0–420 mm |
| Spindle Centerline to Overarm | 8.46 in. | 215 mm |
| Spindle Nose to Column | 1.13 in. | 28.75 mm |
| Motors | ||
| Vertical Spindle | 5 HP | 3.7 Kw |
| Horizontal Spindle | 5 HP | 3.7 Kw |
| X/Y Axis Motor | 0.5 HP | 0.37 Kw |
| Z Axis Motor | 0.5 HP | 0.37 Kw |
| Coolant System | 0.125 HP | 0.093 Kw |
| General | ||
| Floor Area (W × D × H) | 89.37 × 122 × 99.2 in. | 2270 × 3100 × 2520 mm |
| Approximate Weight | 4,850 lbs. | 2200 Kg |
| Power Consumption (220V) | 30 amp | |
| Power Consumption (440V) | 15 amp | |
Standard Equipment
- Flood Coolant System
- Rapid Knee Traverse
- Longitudinal Table Power Feed w/ Rapid Traverse
- Splash Pan
- 1 in. Horizontal Arbor with 2 Arbor Supports
- Wired 220V. 440V needs an optional transformer
Optional Add-Ons
Call for Price
- Power draw bar
- 6 in. KURT vise
- Digital Readout System
- Clamping kit
- 440V transformer
- CE mark, UL components
