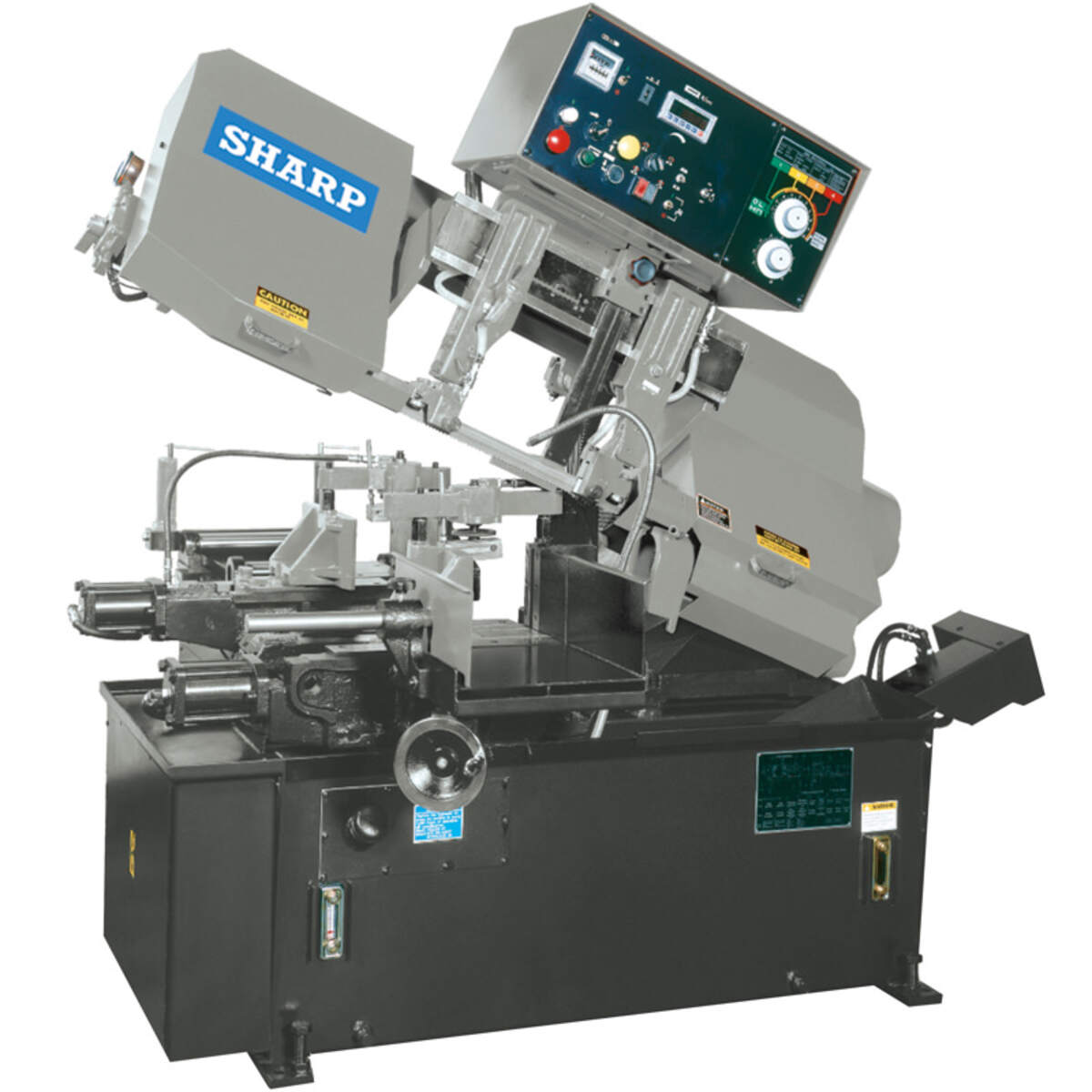

Sharp Industries 10” Round, 10” Square Hydraulic Automatic Band Saw 10” x 11” Rectangular Cutting Capacity, 3 HP SW-100-A
$27,931.00
This hydraulic automatic band saw is a high production machine with hydraulic support heavy duty saw frame and gear box to exert lateral cutting force.
- 10” round, 10” square, 10” x 11” rectangular cutting capacity, 3 HP, 3,080 lbs
- Hydraulic saw frame with heavy duty ball joint for powerful down feed
- Back tilt saw head design to reduce saw twisting between wheel and blade guide
- Control panel incorporate Digital Length Counter, Blade speed monitor, feed pressure and feed rate, selection of bundle and single cutting mode, and preset work piece counter with auto shut off upon out of stock.
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
Specifications and Manual
| Specification | Value |
|---|---|
| Maximum Cutting Capacity | |
| Round | 9.8 in. / 250 mm |
| Square | 9.8 × 9.8 in. / 250 × 250 mm |
| Rectangle (H × W) | 9.8 × 11 in. / 280 × 250 mm |
| Saw Blade | |
| Speed (variable) | 66–328 fpm / 20–100 m/min |
| Size | 1 ¼ × .042 × 138″ / 34 × 3505 × 1.1 mm |
| Tension | Hydraulic controlled |
| Guide | Interchangeable tungsten carbide |
| Cleaning | Steel wire brush with flexible drive shaft driven by main motor |
| Motor Output | |
| Saw Blade Motor | 3 HP / 2.2 kW |
| Hydraulic Motor | 1 HP / 0.75 kW |
| Coolant Pump Motor | 1/8 HP / 0.1 kW |
| Tank Capacity | |
| Hydraulic Oil | 5.0 gal. / 20 L |
| Coolant | 9.5 gal. / 38 L |
| Feed | |
| Mode | Hydraulic with full stroke cylinder |
| Length (Stroke) | Single stroke: 15.9 in. / 403 mm Multi stroke: max 141.7 in. / 3,600 mm |
| General | |
| Vise Control | Split front vise and hydraulic shuttle vise |
| Net Weight | 4,400 lbs / 2,000 kg |
| Gross Weight | 4,840 lbs / 2,200 kg |
| Floor Space (L × W × H) | 6.58 × 6.58 × 4.91 ft / 2 × 2 × 1.49 m |
Standard Equipment
- Easy blade change with front access at wait level
- Blade “clip” device ot ease blade change
- Additional flushing hose for cleaning
- Discharge table with adjustable material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Double retracting vise jaws
- Hydraulic tool clamp for bundle cut
- Laser beam light
