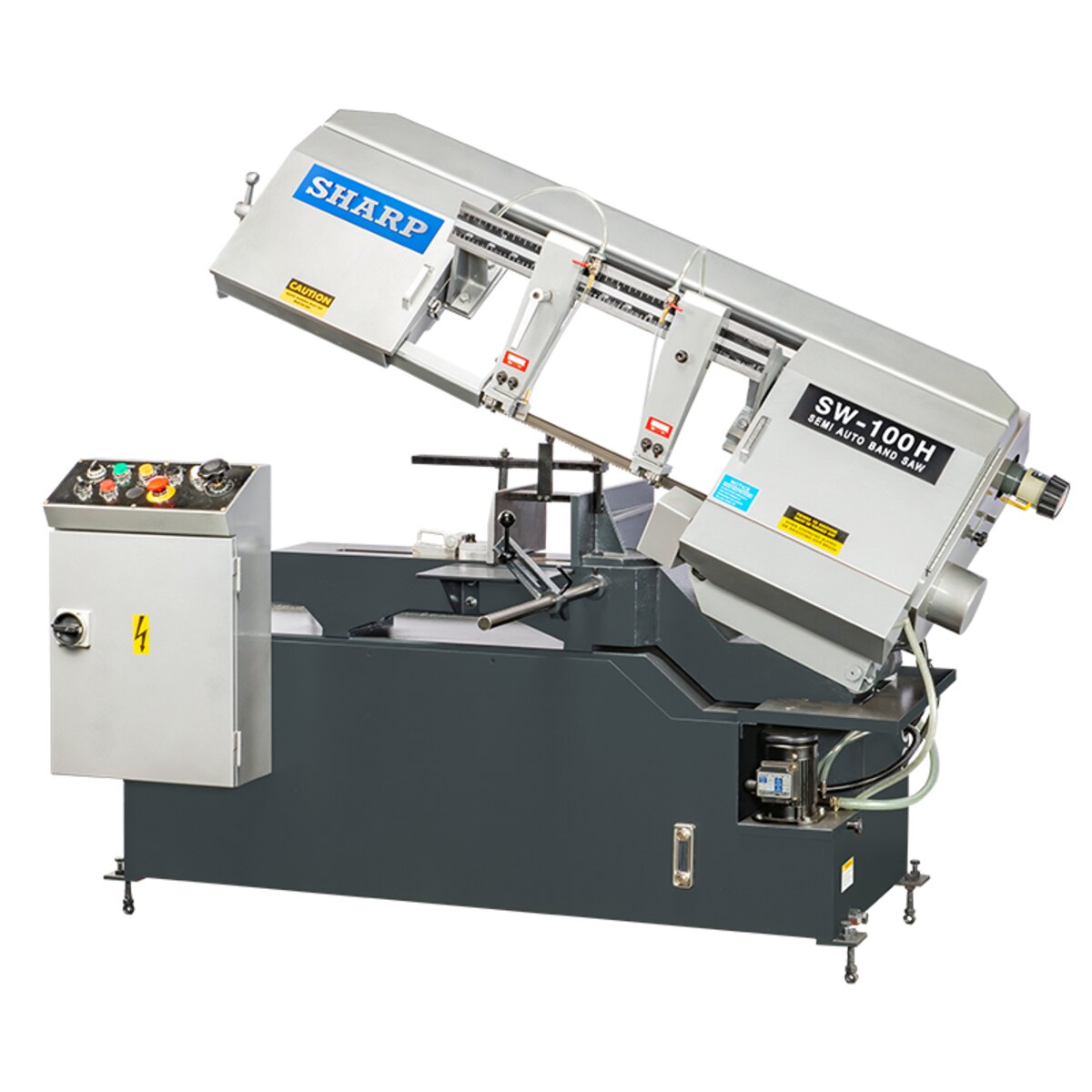

Sharp Industries 9" X 12" Semi-Automatic Horizontal Band Saw SW-100H
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$9,806.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a semi automatic saw with manual vise clamping and mechanical length stop.
- 10” round, 9” square, 9” x 11.8” rectangular cutting capacity
- 2 HP motor, 1276 lbs
- Coolant system
- Auto saw arm return at end of cut
- 4 step blade speeds with worm gear speed reducer
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Maximum Cutting Capacity | ||
| Round | 10″ | 250 mm |
| Square | 9″ | 230 × 230 mm |
| Rectangle (H × W) | 9″ × 11.8″ | 230 × 300 mm |
| Saw Blade | ||
| Speed | 50 Hz: 62, 102, 157, 256 ft/min 60 Hz: 75, 121, 190, 305 ft/min |
50 Hz: 19, 31, 48, 78 m/min 60 Hz: 23, 37, 58, 93 m/min |
| Size | 1″ × 0.035″ × 132″ | 3350 × 27 × 0.9 mm |
| Motor Output | ||
| Saw Blade Motor | 2 HP | 1.5 kW |
| Hydraulic Motor | 0.25 HP | 0.18 kW |
| Coolant Pump Motor | 0.125 HP | 0.1 kW |
| General | ||
| Workable Height | 25″ | 640 mm |
| Gross Weight | 1276 lbs | 580 kg |
| Floor Space (L × W × H) | 73″ × 35.4″ × 41″ | 1850 × 900 × 1040 mm |
Standard Equipment
- Adjustable mechanical material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Infinite variable speed device
- 2M roller table
- 1M roller table
