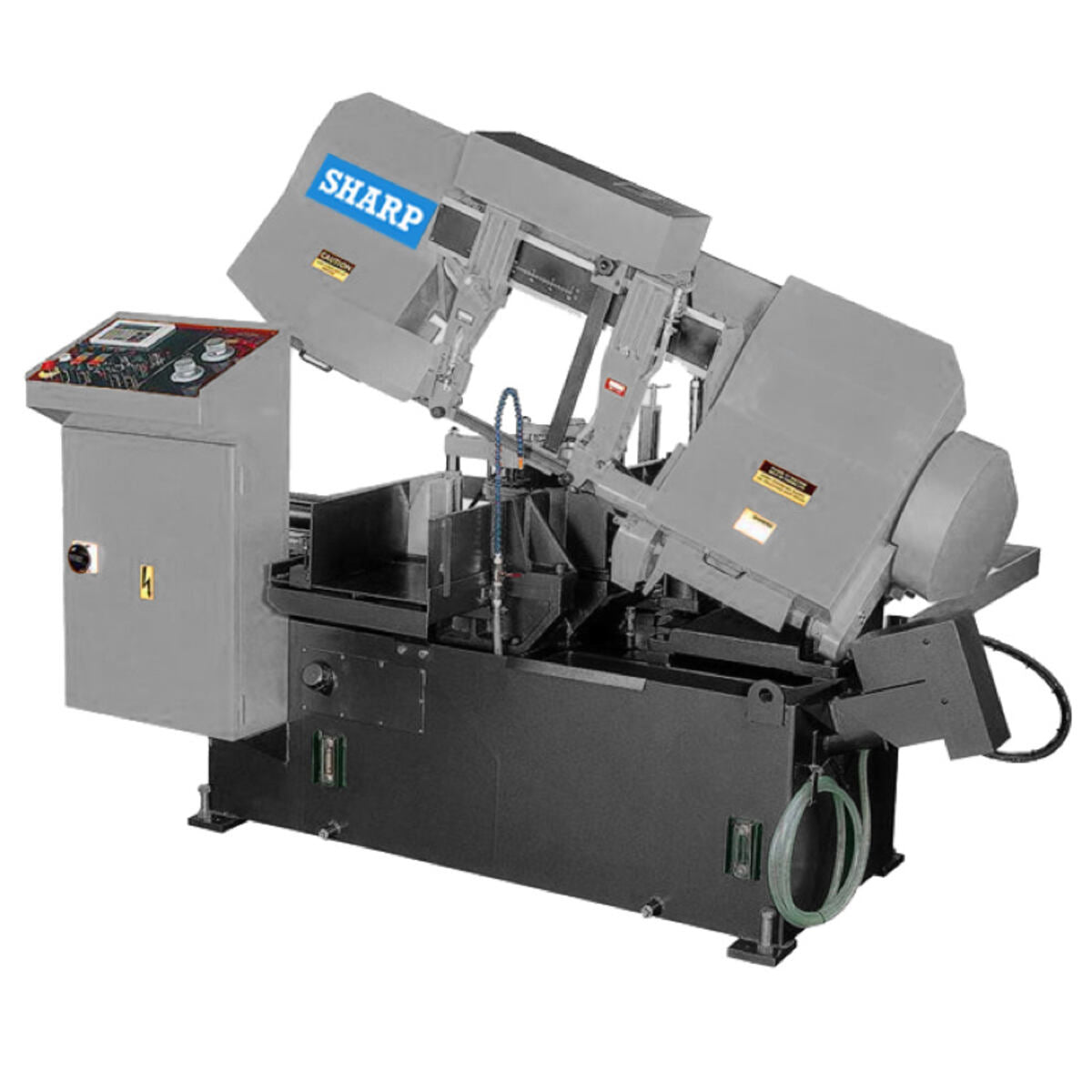

Sharp Industries 10" NC Band Saw SW-100-NC
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$33,649.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
- 10” round, 10” square, 10” x 11” rectangular cutting capacity, 3 HP
- NC operating panel with touch screen
- Hydraulic saw frame with heavy duty ball joint for powerful down feed
- Back tilt saw head design to reduce saw twisting between wheel and blade guide
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Maximum Cutting Capacity | ||
| Round | 10″ | 250 mm |
| Square | 10″ | 250 mm |
| Rectangle (H × W) | 10″ × 11″ | 250 × 280 mm |
| Saw Blade | ||
| Speed | 66 – 328 fpm | 20 – 100 m/min |
| Size | 1 1/4″ × 0.042″ × 138″ | 3505 × 34 × 1.1 mm |
| Tension | Hydraulic | |
| Guide | Interchangeable tungsten carbide | |
| Cleaning | Steel wire brush with flexible drive shaft driven by main motor | |
| Tank Capacity | ||
| Hydraulic Oil | 5.3 gal | 20 L |
| Coolant | 11.9 gal | 45 L |
| Motor Output | ||
| Saw Blade Motor | 3 HP | 2.2 kW |
| Hydraulic Motor | 1 HP | 0.75 kW |
| Coolant Motor | 0.125 HP | 0.093 kW |
| Feed | ||
| Mode | Hydraulic / NC Automatic | |
| Length | Single Stroke: 15.9″ Multi Stroke: Max 999″ Rest Piece (auto): 2″ |
Single Stroke: 403 mm Multi Stroke: Max 99 m Rest Piece (auto): 50 mm |
| General | ||
| Vise Control | Hydraulic with full stroke cylinder | |
| Net Weight | 3300 lbs | 1496 kg |
| Gross Weight | 3750 lbs | 1701 kg |
| Floor Space (L × W × H) | 7.45 × 6.66 × 5.25 ft | 2.27 × 2.02 × 1.60 m |
Standard Equipment
- Easy blade change with front access at wait level
- Blade “clip” device to ease blade change
- Additional flushing hose for cleaning
- Discharge table with adjustable material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Double retracting vise jaws
- Hydraulic tool clamp for bundle cut
- Laser beam light
