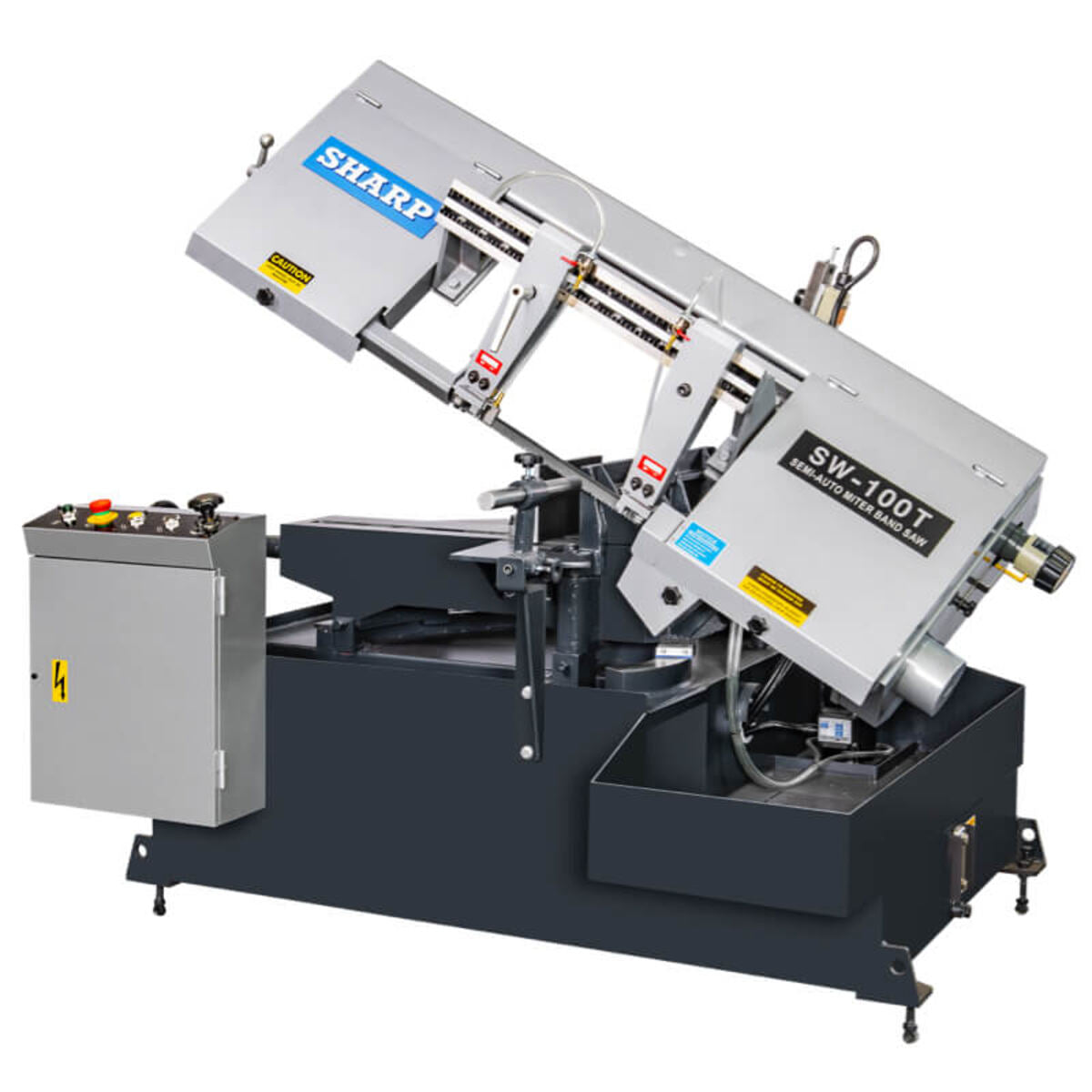

Sharp Industries 9" X 16" Semi-Automatic Horizontal Band Saw SW-100-T
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$10,017.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a semi automatic miter saw for straight and angle cut from 90° to 45° (backwards). The swivel bed miter cutting design are great for structural steel processing, such as pipe, H beam, channel, angle and bar stock, without swinging the material. Hydraulic system controls the down feed rate and cutting pressure.
- 10″ round, 10″ x 10″ square, 9″ x 15.7″ rectangle maximum cutting capacity (90°)
- 7.5″ round, 6.9″ x 6.9″ square, 6″ x 8″ rectangle maximum cutting capacity (45°)
- Saw blade has 4 running speeds. (95, 150, 213, 321 fpm)
- It has manual blade tension adjustment
- 2 HP motor powers the cutting operation
- Manual vise control
- 1/4 HP hydraulic system operates through the control panel
- The saw feed rate may be adjusted by setting the dial between 0 and 10 via the hydraulic down feed valve. This large adjustment range allows proper settings to achieve shorter cutting time, longer blade life and better finishes
- Built-in coolant system
- Machine weight 1,408 lbs
Specifications and Manual
| Specification | 90° Angle | 45° Angle | 30° Angle |
|---|---|---|---|
| Maximum Cutting Capacity | |||
| Round | 10″ (250 mm) | 7.5″ (190 mm) | 8.7″ (220 mm) |
| Square | 10″ × 10″ (250 × 250 mm) | 6.9″ × 6.9″ (175 × 175 mm) | 8.7″ (220 mm) |
| Rectangle (H × W) | 9″ × 15.7″ (230 × 400 mm) | 6″ × 8″ (155 × 205 mm) | 8.7″ × 8.8″ (220 × 240 mm) |
| Saw Blade | |||
| Speed | 60 Hz: 95, 150, 213, 321 fpm (29, 46, 65, 98 m/min) |
60 Hz: 95, 150, 213, 321 fpm (29, 46, 65, 98 m/min) |
60 Hz: 95, 150, 213, 321 fpm (29, 46, 65, 98 m/min) |
| Size | 1″ × 0.035″ × 132″ (25 × 0.9 × 3353 mm) |
1″ × 0.035″ × 132″ (25 × 0.9 × 3353 mm) |
1″ × 0.035″ × 132″ (25 × 0.9 × 3353 mm) |
| Tension & Motor Output | |||
| Tension | Manual | Manual | Manual |
| Saw Blade Motor | 2 HP (1.5 kW) | 2 HP (1.5 kW) | 2 HP (1.5 kW) |
| Hydraulic Motor | 1/4 HP (0.2 kW) | 1/4 HP (0.2 kW) | 1/4 HP (0.2 kW) |
| Coolant Pump Motor | 1/8 HP (0.1 kW) | 1/8 HP (0.1 kW) | 1/8 HP (0.1 kW) |
| General | |||
| Table Height | 25″ (630 mm) | 25″ (630 mm) | 25″ (630 mm) |
| Net Weight | 1,188 lbs (540 kg) | 1,188 lbs (540 kg) | 1,188 lbs (540 kg) |
| Gross Weight | 1,408 lbs (640 kg) | 1,408 lbs (640 kg) | 1,408 lbs (640 kg) |
| Floor Space (L × W × H) | 67″ × 43.5″ × 55.5″ (1700 × 1100 × 1400 mm) |
67″ × 43.5″ × 55.5″ (1700 × 1100 × 1400 mm) |
67″ × 43.5″ × 55.5″ (1700 × 1100 × 1400 mm) |
Standard Equipment
- Easy blade change with front access at wait level
- Adjustable mechanical material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Infinite variable speed device
- 2M roller table
- 1M roller table
