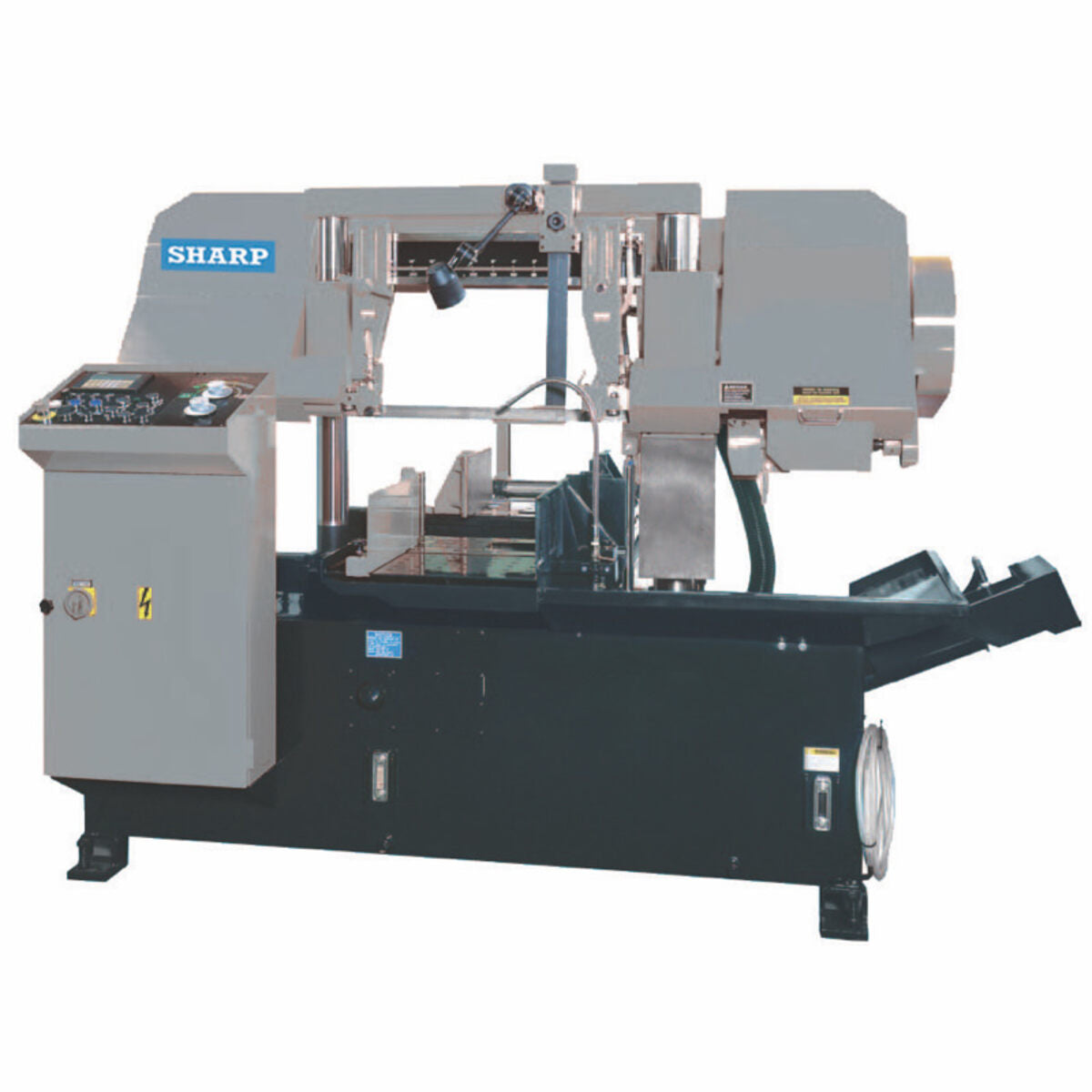

Sharp Industries 12.6" NC Band Saw SW-126-NCD
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$37,975.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This NC operated hydraulic heavy duty double column automatic band saw that utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs. The double column design ensure smooth saw frame movement and consistent stable cutting force to achieve high cutting efficiency and extended blade life.
- 12.6” round, 12.6” square, 15” x 12.6” rectangular cutting capacity, 5 HP
- NC operating panel with touch screen
- Double column hydraulic saw frame with heavy duty ball joint for powerful down feed
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Maximum Cutting Capacity | ||
| Round | 12.6″ | 320 mm |
| Square | 12.6″ | 320 × 320 mm |
| Rectangle (H × W) | 12.6″ × 15″ | 320 × 380 mm |
| Saw Blade | ||
| Speed | 66 – 328 fpm | 20 – 100 m/min |
| Size | 1 1/4″ × 0.042″ × 167″ | 4240 × 34 × 1.1 mm |
| Guide | Tungsten carbide blade guide | |
| Motor Output | ||
| Saw Blade Motor | 5 HP | 3.72 kW |
| Hydraulic Motor | 1 HP | 0.74 kW |
| Coolant Motor | 0.12 HP | 0.08 kW |
| Automatic Material Feed System | ||
| Single Index Stroke | 0 – 15.86″ | 0 – 403 mm |
| Multiple Stroke Indexing | 0 – 3.89″ | 0 – 90 mm |
| General | ||
| Weight | 4840 lbs | 2195 kg |
| Floor Space (L × W × H) | 6.58 × 6.58 × 4.91 ft | 2 × 2 × 1.49 m |
Standard Equipment
- Easy blade change with front access at wait level
- Blade “clip” device to ease blade change
- Additional flushing hose for cleaning
- Discharge table with adjustable material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Double retracting vise jaws
- Hydraulic tool clamp for bundle cut
- Laser beam light
