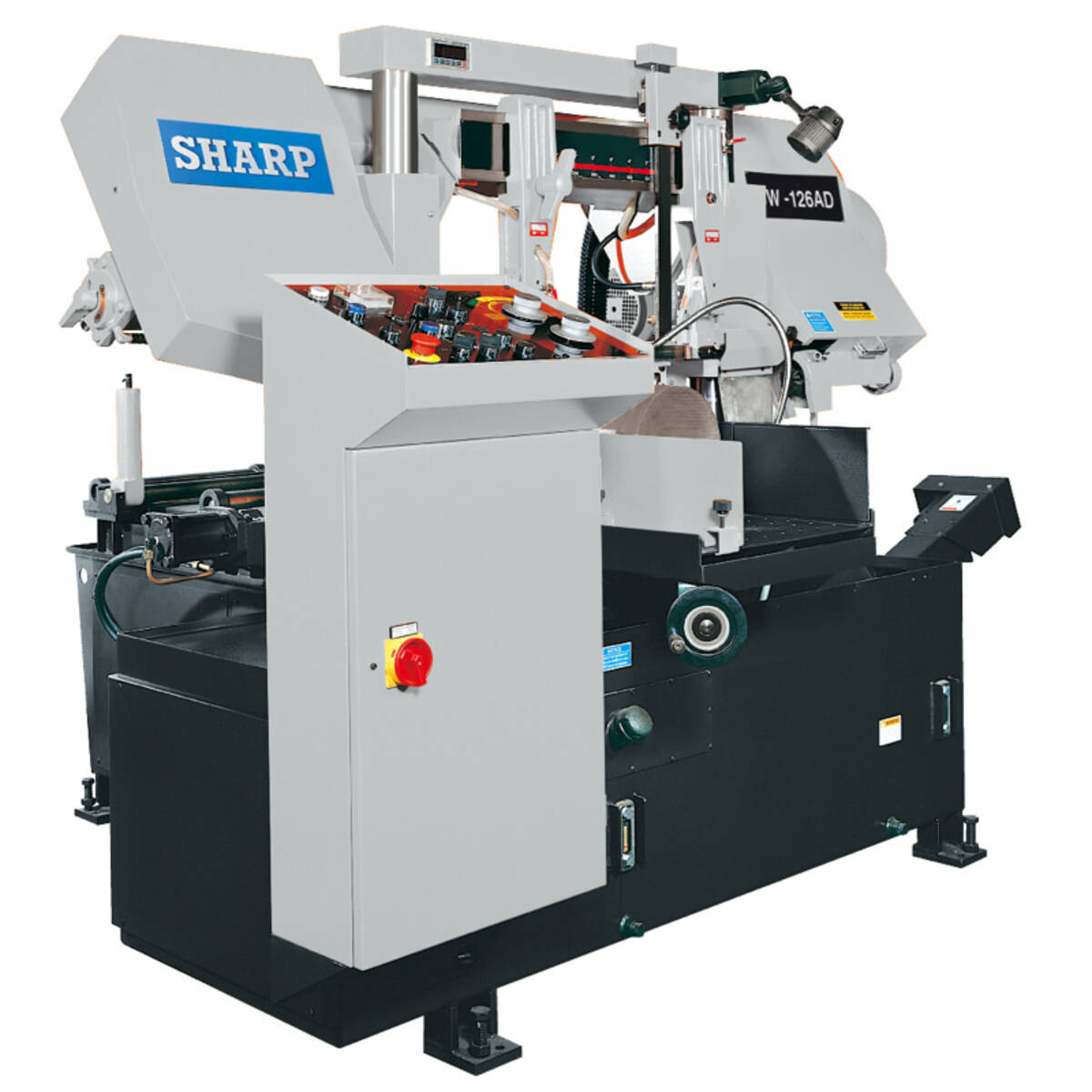

Sharp Industries 12.6” Heavy Duty Double Column Automatic Band Saw SW-126AD
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$37,442.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This heavy duty double column automatic band saw is a high production machine with hydraulic double column saw frame and gear box to exert lateral cutting force. The double column design keeps the blade parallel to the material at all times creating consistent force throughout the entire cutting cycle.
- 12.6” round, 12.6” square, 12.6” x 15” rectangular cutting capacity, and 5 HP.
- PLC controls hydraulic and electric system
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Maximum Cutting Capacity | ||
| Round | 12.6 | 320 mm |
| Square | 12.6 | 320 x 320 mm |
| Rectangle (H x W) | 12.6 x 15 | 320 x 380 mm |
| Saw Blade | ||
| Speed (Inverter driven variable speed) | 66–328 fpm | 20–100 m/min |
| Size | 1 1/4 x .042 x 167" | 4242 x 34 x 1.1 mm |
| Tension | Hydraulic controlled | Hydraulic controlled |
| Guide | Tungsten Carbide Blade Guide | Tungsten Carbide Blade Guide |
| Cleaning | Wire Brush | Wire Brush |
| Motor Output | ||
| Saw Blade | 5 HP | 3.75 kW |
| Hydraulic | 1 HP | 0.75 kW |
| Coolant | 0.12 HP | 0.08 kW |
| Tank Capacity | ||
| Hydraulic Oil | 6.60 gallons | 25 L |
| Coolant | 11.88 gallons | 45 L |
| Feed | ||
| Mode | Hydraulic / Automatic | Hydraulic / Automatic |
| Length | Single stroke: 15.9 in. 9 times: max. 141 in. |
400 mm 3600 mm |
| General | ||
| Vise Control | Split front vise and hydraulic shuttle vise | Split front vise and hydraulic shuttle vise |
| Net Weight | 4400 lbs. | 2000 kg |
| Gross Weight | 4840 lbs. | 2200 kg |
| Floor Space (L x W x H) | 6.58 x 6.58 x 4.91 ft. | 2 x 2 x 1.49 m |
Standard Equipment
- Easy blade change with front access at wait level
- Blade “clip” device to ease blade change
- Additional flushing hose for cleaning
- Discharge table with adjustable material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Double retracting vise jaws
- Hydraulic tool clamp for bundle cut
- Laser beam light
