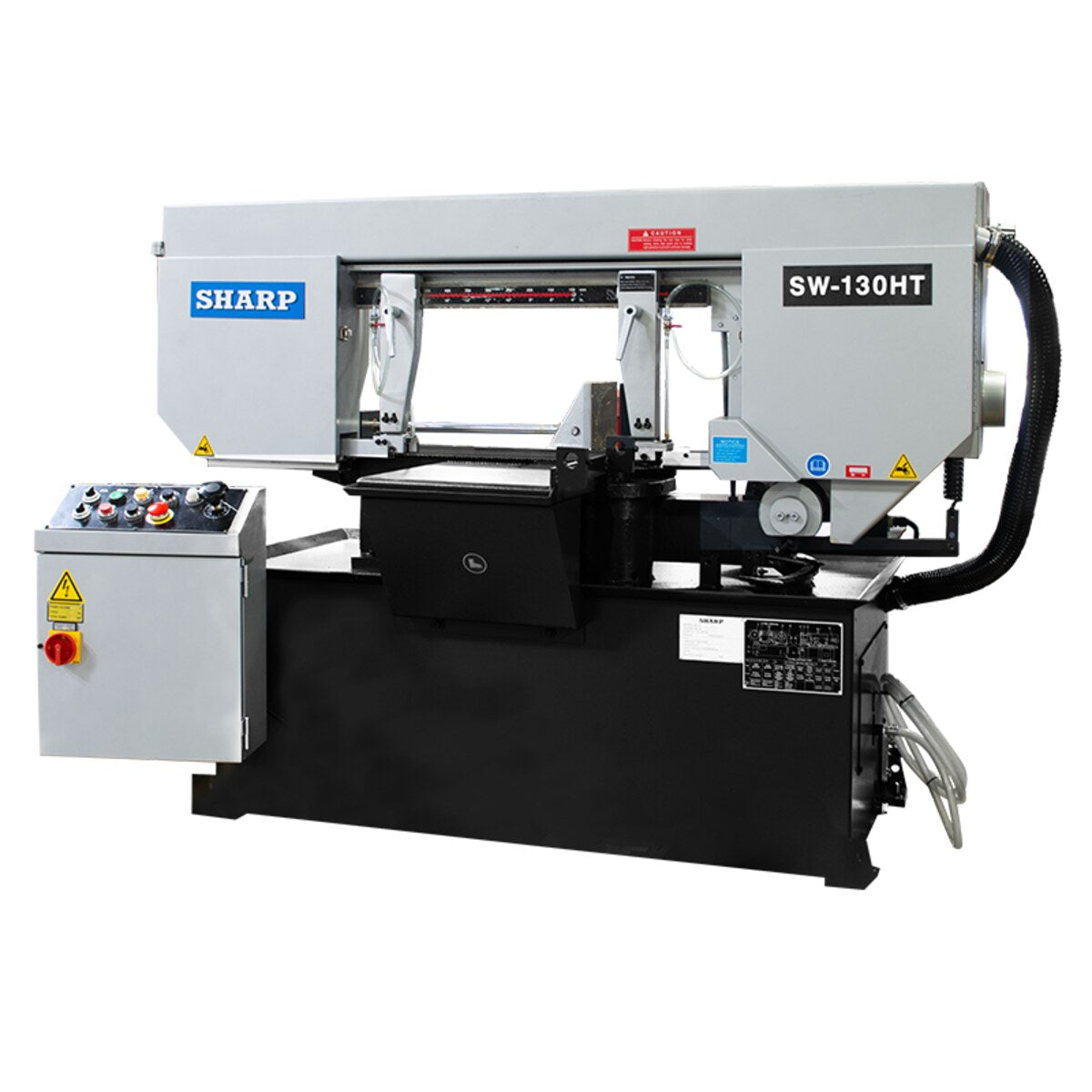

Sharp Industries 10.6" X 18" Miter Cutting Semi Automatic Band Saw SW-130-HT
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$15,714.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a semi automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
- 13” round, 11” x 11” square, 10.6” x 18” rectangular cutting capacity (90°)
- 11.4” round, 10.5” x 10.5” square, 8.7” x 8.7” rectangular cutting capacity (45°)
- 8.7” round, 8.7” x 8.7” square, 8.7” x 8.8” rectangular cutting capacity (30°)
- 3 HP motor, 1,848 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
Specifications and Manual
| Specification | 90° Angle | 45° Angle | 30° Angle |
|---|---|---|---|
| Maximum Cutting Capacity | |||
| Round | 13″ (330 mm) | 11.4″ (300 mm) | 8.7″ (220 mm) |
| Square | 11″ (280 mm) | 10.5″ (240 mm) | 8.7″ (220 mm) |
| Rectangle (H × W) | 10.6″ × 18″ (440 × 280 mm) or 19.6″ × 5.5″ (500 × 140 mm) |
8.7″ × 8.7″ (300 × 240 mm) | 8.7″ × 8.8″ (220 × 240 mm) |
| Saw Blade | |||
| Speed | 98 – 328 fpm (30 – 100 m/min) |
98 – 328 fpm (30 – 100 m/min) |
98 – 328 fpm (30 – 100 m/min) |
| Size | 1″ × 0.035″ × 163″ (4140 × 27 × 0.9 mm) |
1″ × 0.035″ × 163″ (4140 × 27 × 0.9 mm) |
1″ × 0.035″ × 163″ (4140 × 27 × 0.9 mm) |
| Tension & Motor Output | |||
| Tension | Manual | ||
| Saw Blade Motor | 3 HP (2.2 kW) | 3 HP (2.2 kW) | 3 HP (2.2 kW) |
| Hydraulic Motor | ½ HP (0.37 kW) | ½ HP (0.37 kW) | ½ HP (0.37 kW) |
| Coolant Pump Motor | 1/8 HP (0.09 kW) | 1/8 HP (0.09 kW) | 1/8 HP (0.09 kW) |
| General | |||
| Table Height | 32.3″ (820 mm) | ||
| Net Weight | SW‑130HTM: 1,320 lbs (600 kg) SW‑130HTSA: 1,408 lbs (640 kg) |
||
| Gross Weight | SW‑130HTM: 1,760 lbs (800 kg) SW‑130HTSA: 1,848 lbs (840 kg) |
||
| Floor Space (L × W × H) | 87.44″ × 43.38″ × 57.8″ (2221 × 1102 × 1469 mm) |
||
Standard Equipment
- Easy blade change with front access at wait level
- Adjustable mechanical material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Infinite variable speed device
- 2M roller table
- 1M roller table
