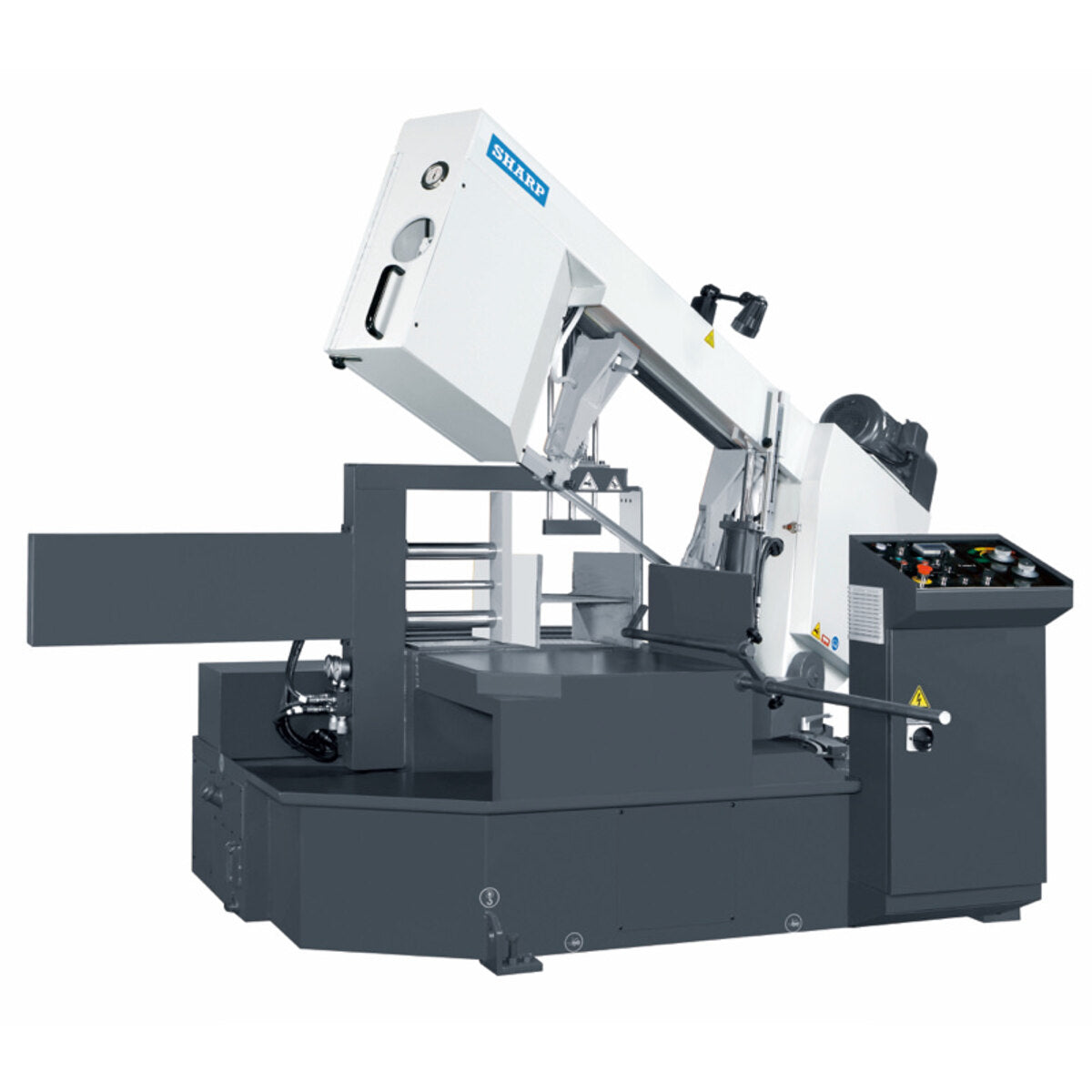

Sharp Industries 15" X 25.5" Miter Cutting Semi-Automatic Band Saw SW-165-HT
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$35,110.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a semi automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
- 5” round, 15” x 25.5” rectangular cutting capacity (90°)
- 7” x 9.8” rectangular (60°)
- 7” round, 15.7” x 15.7” square (45°)
- 8” round (30°)
- 5 HP motor, 3,300 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
Specifcations and Manual
| Specification | Inch | Metric |
|---|---|---|
| Miter Capacity | ||
| 60° Maximum | 60° Maximum | 60° Maximum |
| Maximum Cutting Capacity | ||
| Round | 16.5″ | 420 mm |
| Round at 45° | 15.75″ | 400 mm |
| Round at 30° | 9.8″ | 250 mm |
| Rectangle (H × W) | 14.9″ × 25.5″ | 380 × 650 mm |
| Rectangle at 45° | 15.75″ × 15.75″ | 400 × 400 mm |
| Rectangle at 30° | 15.75″ × 9.8″ | 400 × 250 mm |
| Blade | ||
| Speed (LED inverter) | 66–330 fpm | 20–100 m/min |
| Size | 1 1/4″ × 0.042″ × 209″ | 1.33 × 34 × 208.66 mm |
| Tension | Hydraulic | |
| Cleaning | Powered wire brush | |
| Guides | Carbide w/ pre-alignment rollers | |
| Motor Output | ||
| Saw Blade Motor | 5 HP | 3.75 kW |
| Hydraulic Motor | 1 HP | 0.75 kW |
| Coolant Pump Motor | 0.12 HP | 0.08 kW |
| General | ||
| Weight | 3,307 lbs | 1500 kg |
| Workbed Height | 29.52″ | 750 mm |
| Floor Space (L × W × H) | 90.55″ × 114.17″ × 98.42″ (2300 × 2900 × 2500 mm) |
|
Standard Equipment
- Easy blade change with front access at wait level
- Discharge table with adjustable material stop
- Bi-Metal saw blade
- Coolant system
- Tools leveling pads and additional wire brush
Optional Add-Ons
Call for Price
- Hydraulic chip conveyor
- Vise pressure regulator
- 3 M powered roller table
- Hydraulic tool clamp for bundle cut
