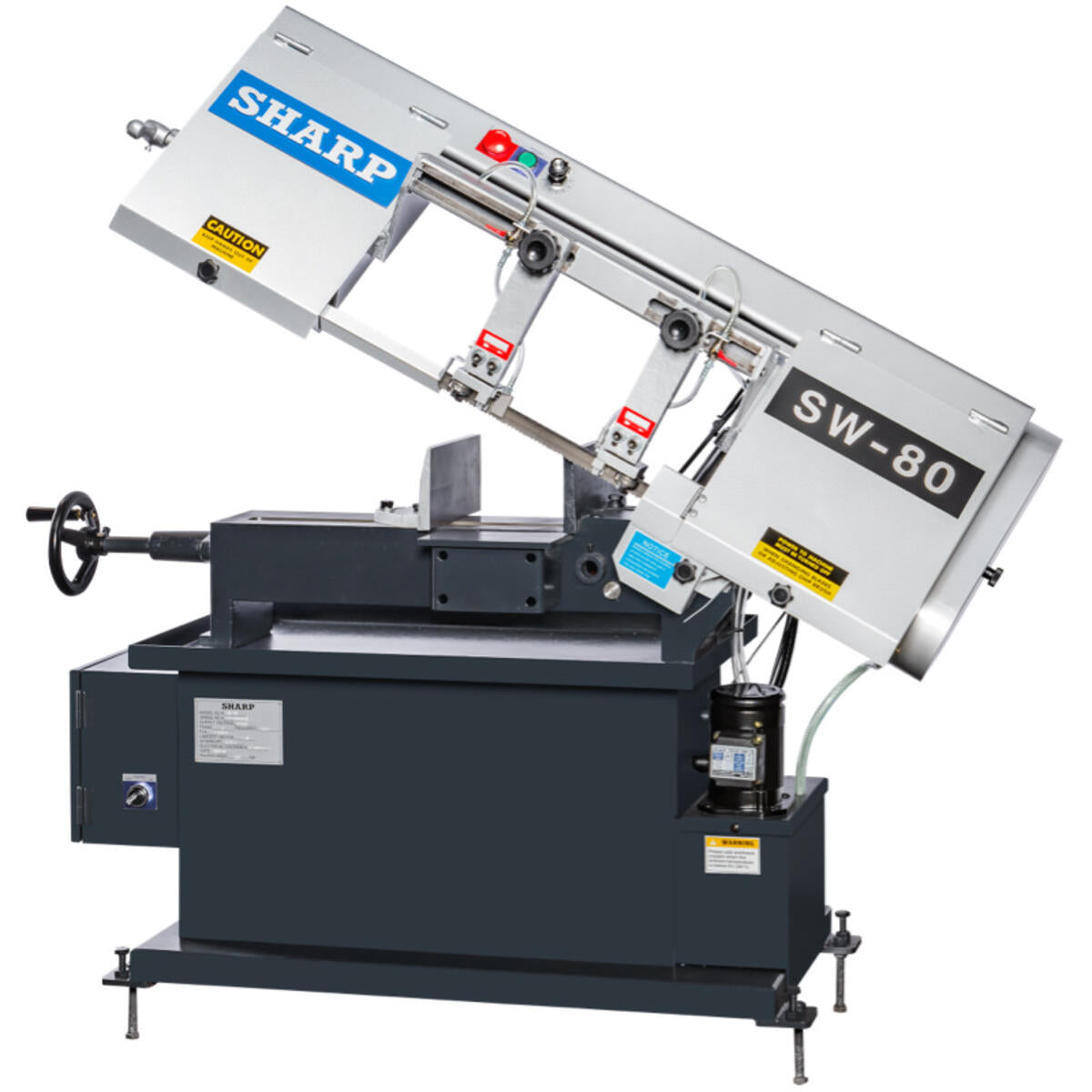

Front view of Sharp Industries SW-80

Sharp Industries 7" X 11" Manual Horizontal Band Saw SW-80

by Sharp Industries

There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.

$4,531.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

Simple, easy to use manual saw with 8” capacity for round stock, vise can swivel 45°, manual vise clamping, mechanical length stop.

  • 8” round, 7” square, 7” x 11.4” rectangular cutting capacity(90°)
  • 5” round, 6” square capacity (45°)
  • 1 HP motor, 660 lbs
  • Coolant system
  • Auto saw arm return at end of cut
  • 4 step blade speeds with worm gear speed reducer
  • Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
  • Blade brush to remove chips from blade gullet
  • Adjuster stock stop
  • Manual blade tension adjustment
Specifications and Manual
Specification 90° Angle 45° Angle
Maximum Cutting Capacity
Round 8″ (200 mm) 8″ (200 mm)
Square 7″ (180 mm) 6″ (152 mm)
Rectangle (H × W) 7″ × 11.4″ (180 × 290 mm) 9″ × 6″ (228 × 152 mm)
Saw Blade
Speed 60 Hz: 59, 96, 155, 260 fpm
(18, 29, 47, 79 m/min)
50 Hz: 49, 83, 129, 217 fpm
(15, 24, 39, 66 m/min)		 60 Hz: 59, 96, 155, 260 fpm
(18, 29, 47, 79 m/min)
50 Hz: 49, 83, 129, 217 fpm
(15, 24, 39, 66 m/min)
Size 1″ × 0.035″ × 107″ (2720 × 27 × 0.9 mm) 1″ × 0.035″ × 107″ (2720 × 27 × 0.9 mm)
Tension & Motor Output
Tension Manual Manual
Saw Blade Motor 1 HP (0.75 kW) 1 HP (0.75 kW)
Coolant
Coolant Pump Motor 1/8 HP (0.1 kW) 1/8 HP (0.1 kW)
General
Table Height 25″ (640 mm) 25″ (640 mm)
Vise Control Manual Manual
Net Weight 484 lbs (220 kg) 484 lbs (220 kg)
Gross Weight 528 lbs (240 kg) 528 lbs (240 kg)
Floor Space (L × W × H) 56″ × 24.5″ × 45″
(1450 × 625 × 1145 mm)		 56″ × 24.5″ × 45″
(1450 × 625 × 1145 mm)

SW-80 Manual

Operation Manual and Parts List

SW-80 Manual Click Here to Open!
Standard Equipment
  • Adjustable mechanical material stop
  • Bi-Metal saw blade
  • Coolant system
  • Tools leveling pads and additional wire brush
Optional Add-Ons

Call for Price

  • Infinite variable speed device
  • 2M roller table
  • 1M roller table
Description

Simple, easy to use manual saw with 8” capacity for round stock, vise can swivel 45°, manual vise clamping, mechanical length stop.
  • 8” round, 7” square, 7” x 11.4” rectangular cutting capacity(90°)
  • 5” round, 6” square capacity (45°)
  • 1 HP motor, 660 lbs
  • Coolant system
  • Auto saw arm return at end of cut
  • 4 step blade speeds with worm gear speed reducer
  • Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
  • Blade brush to remove chips from blade gullet
  • Adjuster stock stop
  • Manual blade tension adjustment
 
Specifications and Manual
Specification 90° Angle 45° Angle
Maximum Cutting Capacity
Round 8″ (200 mm) 8″ (200 mm)
Square 7″ (180 mm) 6″ (152 mm)
Rectangle (H × W) 7″ × 11.4″ (180 × 290 mm) 9″ × 6″ (228 × 152 mm)
Saw Blade
Speed 60 Hz: 59, 96, 155, 260 fpm
(18, 29, 47, 79 m/min)
50 Hz: 49, 83, 129, 217 fpm
(15, 24, 39, 66 m/min)		 60 Hz: 59, 96, 155, 260 fpm
(18, 29, 47, 79 m/min)
50 Hz: 49, 83, 129, 217 fpm
(15, 24, 39, 66 m/min)
Size 1″ × 0.035″ × 107″ (2720 × 27 × 0.9 mm) 1″ × 0.035″ × 107″ (2720 × 27 × 0.9 mm)
Tension & Motor Output
Tension Manual Manual
Saw Blade Motor 1 HP (0.75 kW) 1 HP (0.75 kW)
Coolant
Coolant Pump Motor 1/8 HP (0.1 kW) 1/8 HP (0.1 kW)
General
Table Height 25″ (640 mm) 25″ (640 mm)
Vise Control Manual Manual
Net Weight 484 lbs (220 kg) 484 lbs (220 kg)
Gross Weight 528 lbs (240 kg) 528 lbs (240 kg)
Floor Space (L × W × H) 56″ × 24.5″ × 45″
(1450 × 625 × 1145 mm)		 56″ × 24.5″ × 45″
(1450 × 625 × 1145 mm)

SW-80 Manual

Operation Manual and Parts List

SW-80 Manual Click Here to Open!
Standard Equipment
  • Adjustable mechanical material stop
  • Bi-Metal saw blade
  • Coolant system
  • Tools leveling pads and additional wire brush
Optional Add-Ons

Call for Price

  • Infinite variable speed device
  • 2M roller table
  • 1M roller table
