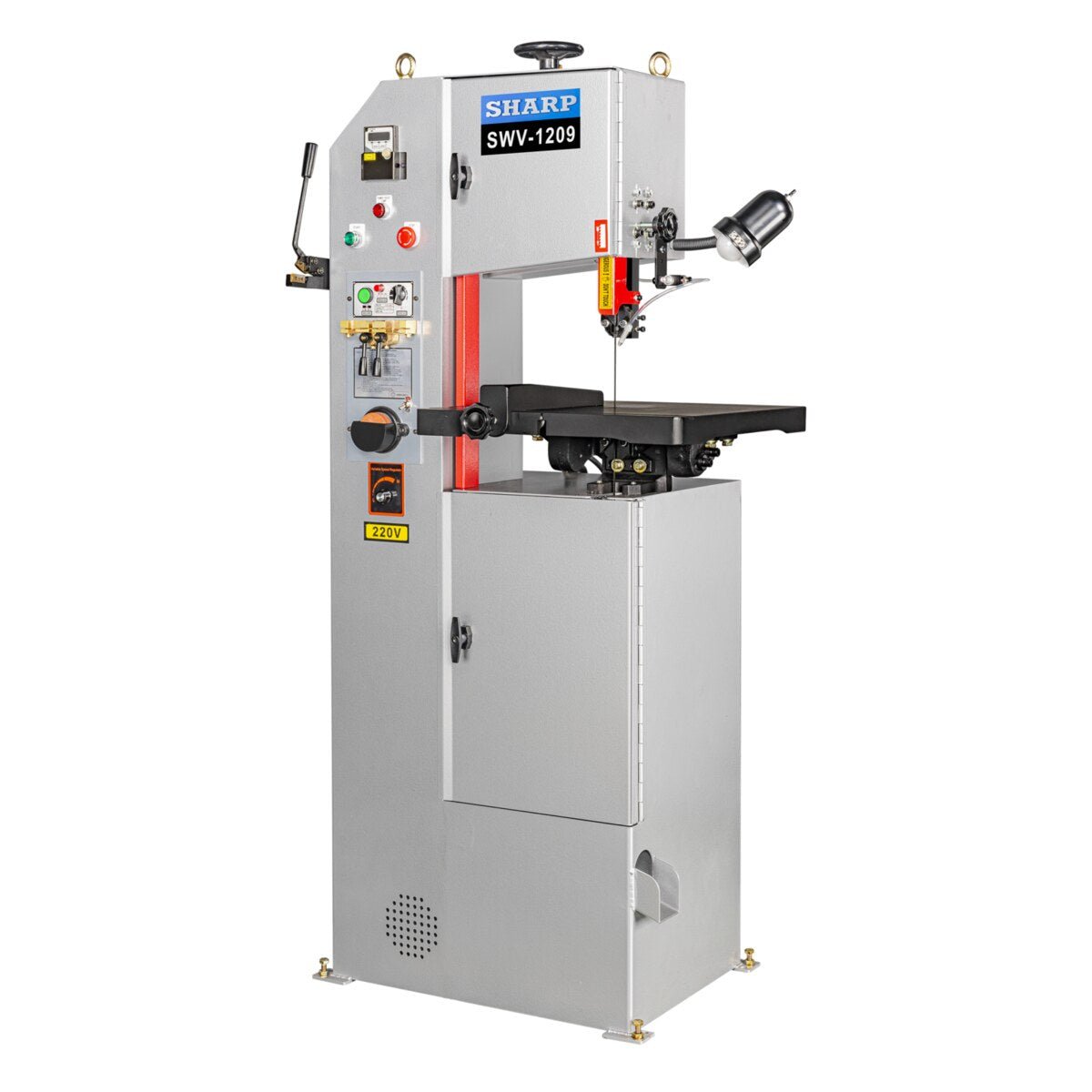

Sharp Industries 11" x 7.8" Vertical Contour Band Saw SWV-1209
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
Sharp’s multi-function design along with easy operating system makes our vertical contour band saw suitable for cutting a wide range of materials. The superior flexibility allows users to accurately cut contour shapes, straight cuts and even make internal cuts on one self-contained machine.
The Sharp Vertical Band saw is one of the most versatile machines on the market today. It’s multi-purpose design, inverter drive, and heavily constructed base allows the machine to cut smoothly even while operating at a high speed range: 36m~400m/min or 118 ft. to 1312 ft./min.
With just the turn of a knob the band speed is digitally displayed and is easily adjusted for the material being cut from 118 ft to 1.312 ft/min. This allows the machine to cut effectively, and accurately on a very broad range of materials.
One of the biggest advantages this versatile machine provides is allowing the operator to make straight, contour, or internal cuts on metal, wood, plastic, etc.
-
Infinite Variable Blade Speed
The inverter drive with the digitally displayed band speed range makes the machine ideal for cutting a wide variety of materials. -
LED Industrial Work light
The work light allows the operator to easily see exactly where the band saw blade is cutting. -
The One Piece Construction
Increases the rigidity of the machine reducing vibration in the sawing process for increased productivity and long blade life. -
Manual Band Tension & Indicator
This allows for the proper tensioning of the band saw blade based on the width of the blade being used. -
Post Elevation Retention Knob
This allows for proper positioning to the upper saw guide for more accurate cutting and longer blade life. -
Cast Iron Table
Provides for a very rigid working surface for the parts being cut. -
Rip Fence
Make cutting of straight cuts of any length very simple for operator. -
Chip Blower
Make it easy to see scribed line during cutting process. -
Blade Shear
Allows the operator to cut the blade to the appropriate length at the machine before welding greatly enhancing convenience. -
Blade Welder
Compared with the general design of copper material, Sharp uses the gold-plated welding port that are less likely to oxidize and affect the welding process. This standard feature allows the operator to thread the saw blade thought a hole in the part, re-weld the sawblade at the machine, and perform internal cutting. This process increases productivity and saves money. -
Built in Blade Grinder
Allows the operator to grind off the slag created in the blade welding process at the saw. -
Power Button
Conveniently located on the front of the machine for easy operation. -
Blade Guides & Back up Bearing
Tungsten carbide tipped for extended life and accuracy of cut. -
Brush For Cleaning Drive Wheel
Eliminates chip interference in the cutting process
Check out this video about the Sharp Industries SWV-1614 which is very similar to the Sharp Industries SWV-1209.
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Cutting Capacity | ||
| Max Cutting Capacity, Throat | 11 in. | 280 mm |
| Max Cutting Capacity, Height | 7.8 in. | 200 mm |
| Wheel Diameter | 12.2 in. | 310 mm |
| Inclination | ||
| Front/Back | 10° | 10° |
| Left/Right | 15° | 15° |
| Table & Blade | ||
| Table Size | 19.6 × 19.6″ | 500 × 500 mm |
| Blade Length | 100″ | 2560 mm |
| Motor & Speed | ||
| Motor | 1 HP | 0.75 kW |
| Blade Speed | 118–1,312 ft/min | 30–400 m/min |
| Machine & Weight | ||
| Machine Dimensions (L × W × H) | 35″ × 26″ × 60″ | 890 × 655 × 1536 mm |
| Weight | 440 lbs | 200 kg |
