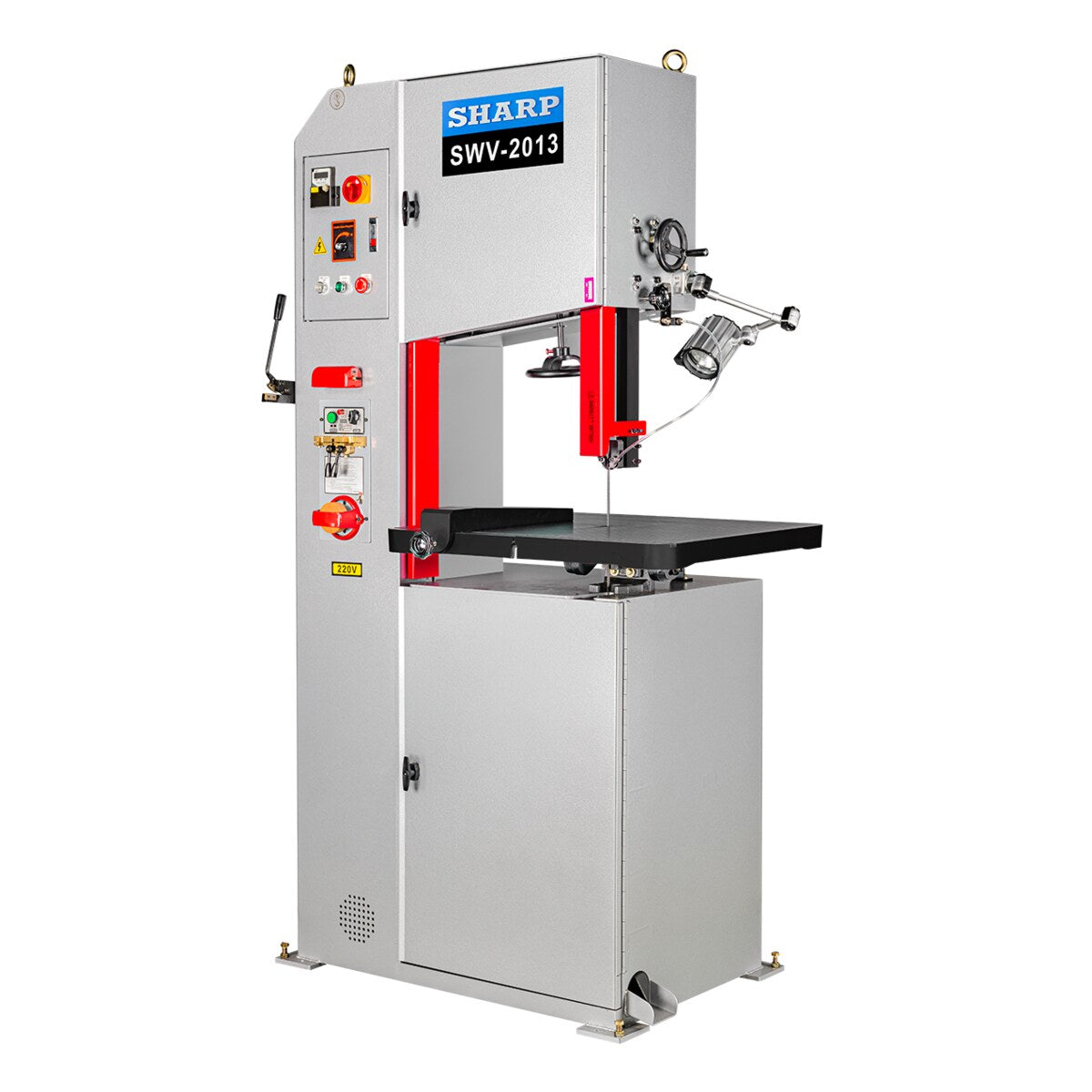

Sharp Industries 19.7" x 13" Vertical Contour Band Saw SWV-2013
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
Sharp ‘s multi-function design along with easy operating system makes our vertical contour band saw suitable for cutting a wide range of materials. The superior flexibility allows users to accurately cut contour shapes, straight cuts and even make internal cuts on one self-contained machine.
The Sharp Vertical Band saw is one of the most versatile machines on the market today. It’s multi-purpose design, inverter drive, and heavily constructed base allows the machine to cut smoothly even while operating at a high-speed range: 36m~580m/min or 118 ft. to 1,902 ft./min.
With just the turn of a knob the band speed is digitally displayed and is easily adjusted for the material being cut from 118 ft to 1,902 ft/min. This allows the machine to cut effectively, and accurately, on a very broad range of materials.
One of the biggest advantages this versatile machine provides is allowing the operator to make straight, contour, or internal cuts on metal, wood, plastic, etc.
One of the biggest advantages this versatile machine provides is allowing the operator to make straight, contour, or internal cuts on metal, wood, plastic, etc.
-
Infinite Variable Blade Speed
The inverter drive with the digitally displayed band speed range makes the machine ideal for cutting a wide variety of materials. -
LED Industrial Work light
The work light allows the operator to easily see exactly where the band saw blade is cutting. -
The One Piece Construction
Increases the rigidity of the machine reducing vibration in the sawing process for increased productivity and long blade life. -
Manual Band Tension & Indicator
This allows for the proper tensioning of the band saw blade based on the width of the blade being used. -
Post Elevating Hand Wheel
This allows for proper positioning to the upper saw guide for more accurate cutting and longer blade life. -
Cast Iron Table
Provides for a very rigid working surface for the parts being cut. -
Rip Fence
Make cutting of straight cuts of any length very simple for operator. -
Chip Blower
Make it easy to see scribed line during cutting process. -
Blade Shear
Allows the operator to cut the blade to the appropriate length at the machine before welding greatly enhancing convenience. -
Blade Welder
Compared with the general design of copper material, Sharp uses the gold-plated welding port that are less likely to oxidize and affect the welding process. This standard feature allows the operator to thread the saw blade thought a hole in the part, re-weld the sawblade at the machine, and perform internal cutting. This process increases productivity and saves money. -
Built in Blade Grinder
Allows the operator to grind off the slag created in the blade welding process at the saw. -
Power Button
Conveniently located on the front of the machine for easy operation. -
Blade Guides & Back up Bearing
Tungsten carbide tipped for extended life and accuracy of cut. -
Brush For Cleaning Drive Wheel
Eliminates chip interference in the cutting process
Check out this video about the Sharp Industries SWV-1614 which is very similar to the Sharp Industries SWV-2013.
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Cutting Capacity | ||
| Max Cutting Capacity, Throat | 19.7 in. | 500 mm |
| Max Cutting Capacity, Height | 13 in. | 330 mm |
| Wheel Diameter | 19.7 in. | 500 mm |
| Inclination | ||
| Front/Back | 10° | 10° |
| Left/Right | 15° | 15° |
| Table & Blade | ||
| Table Size | 23.6 × 19.7″ | 600 × 500 mm |
| Blade Length | 160″ | 4070 mm |
| Motor & Speed | ||
| Motor | 2 HP | 1.5 kW |
| Blade Speed | 118–1902 ft/min | 36–580 m/min |
| Machine & Weight | ||
| Machine Dimensions (L × W × H) | 49.6 × 37.2 × 77.2″ | 1260 × 945 × 1960 mm |
| Weight | 1,122 lbs | 510 kg |
